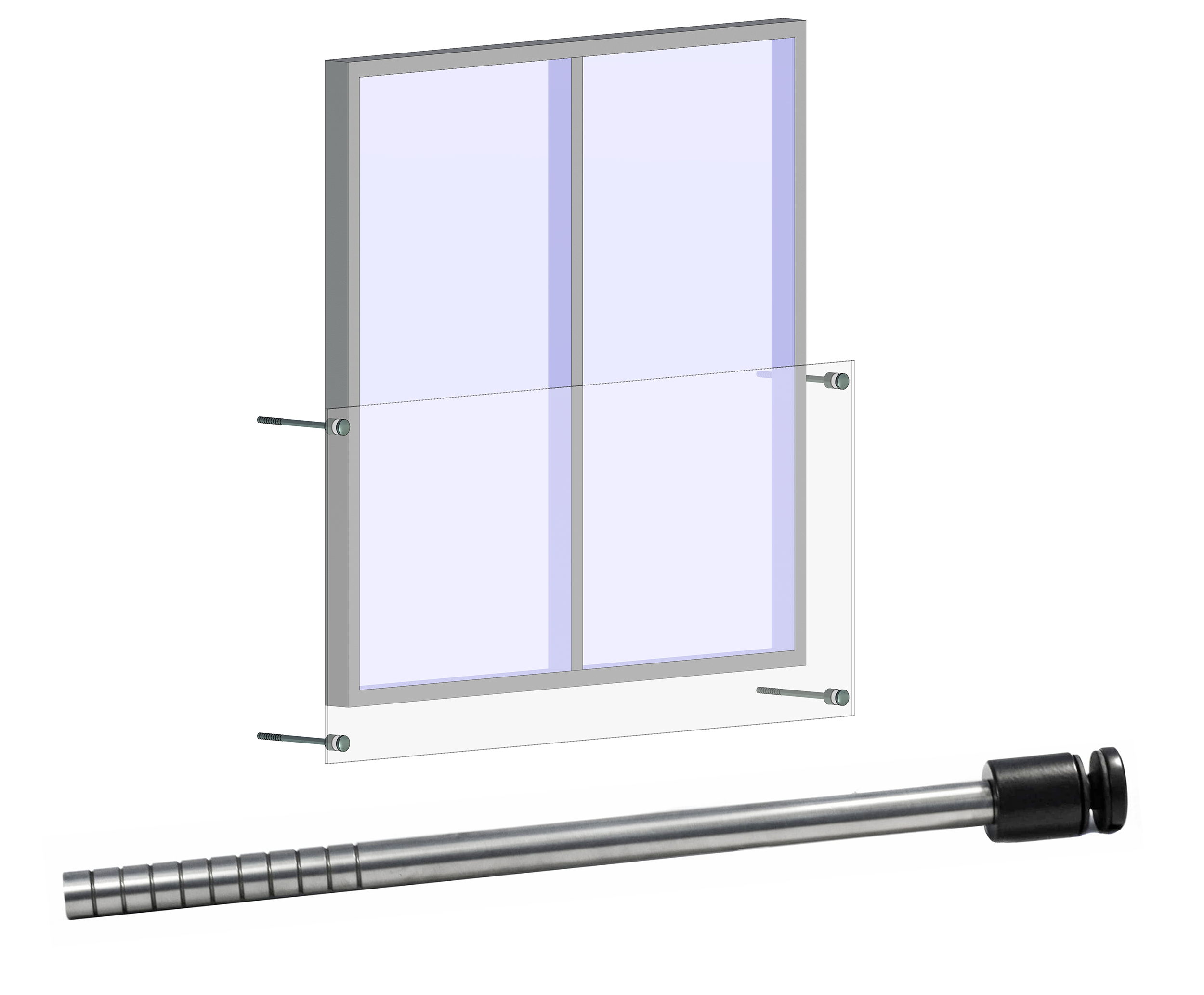

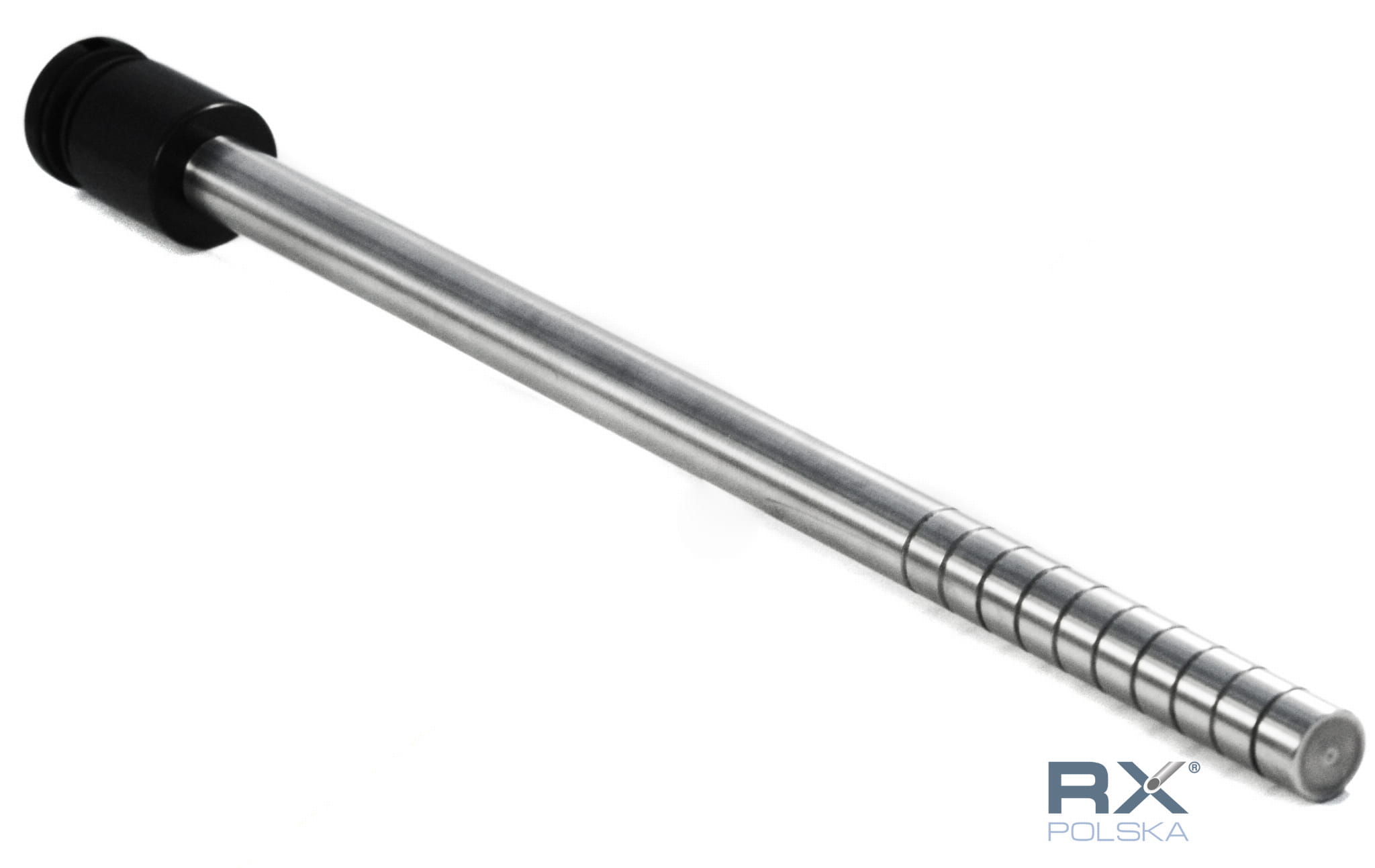

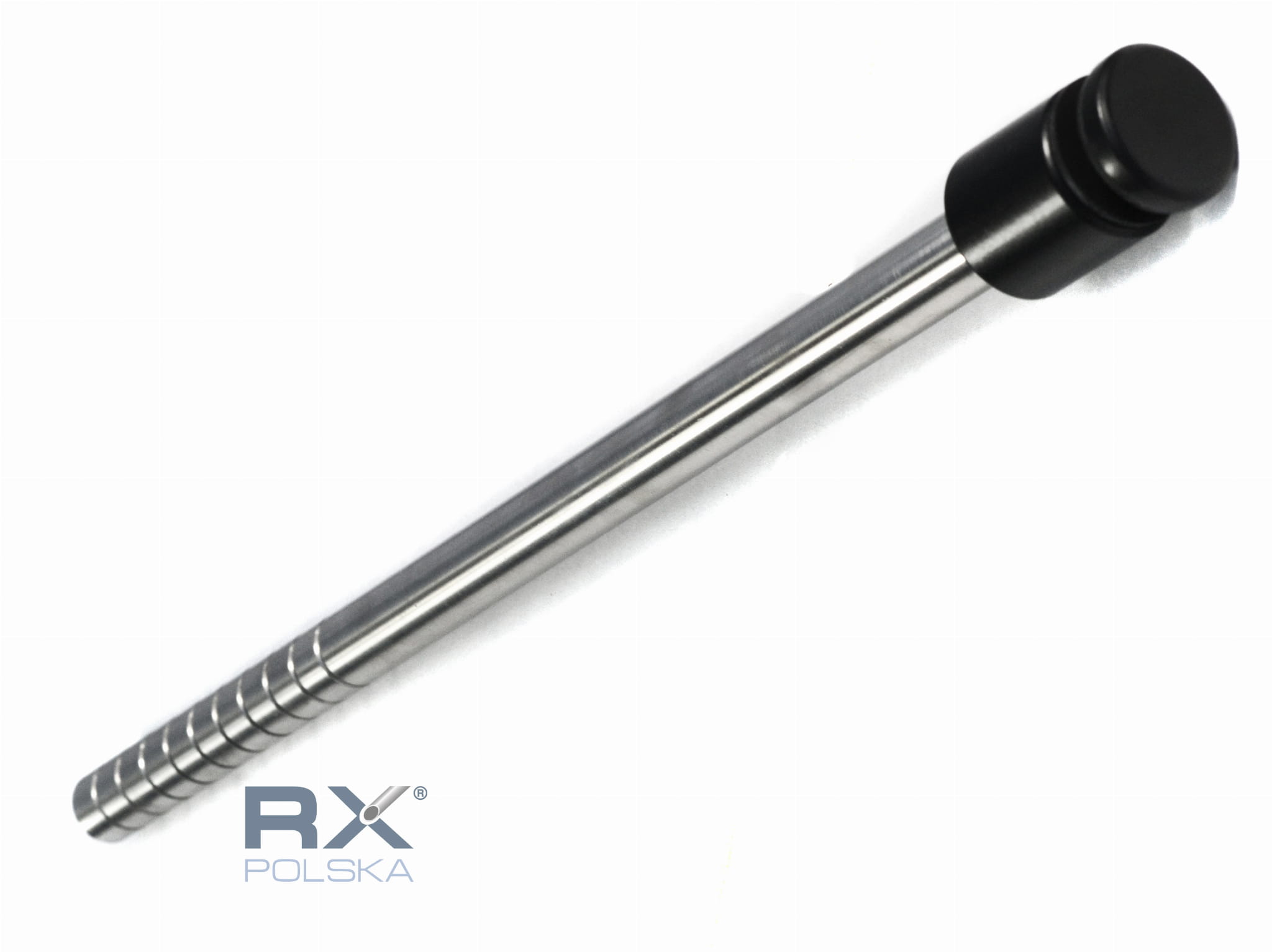

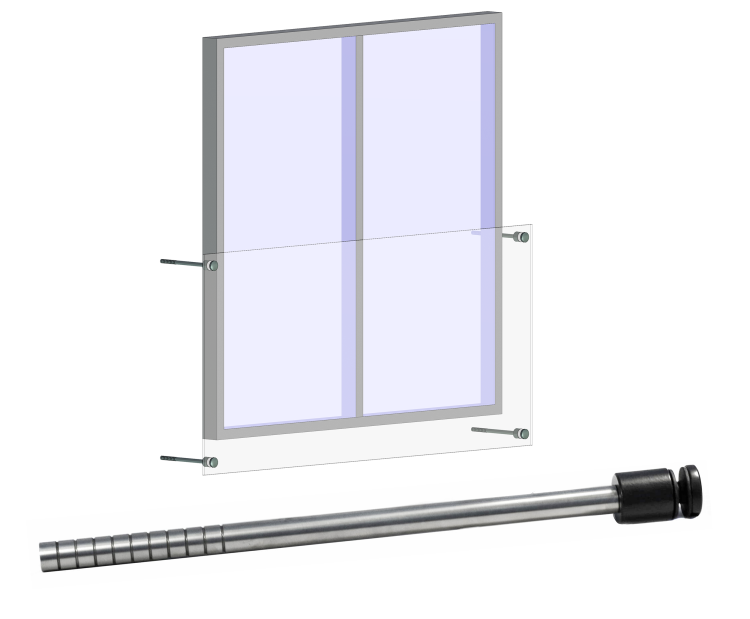

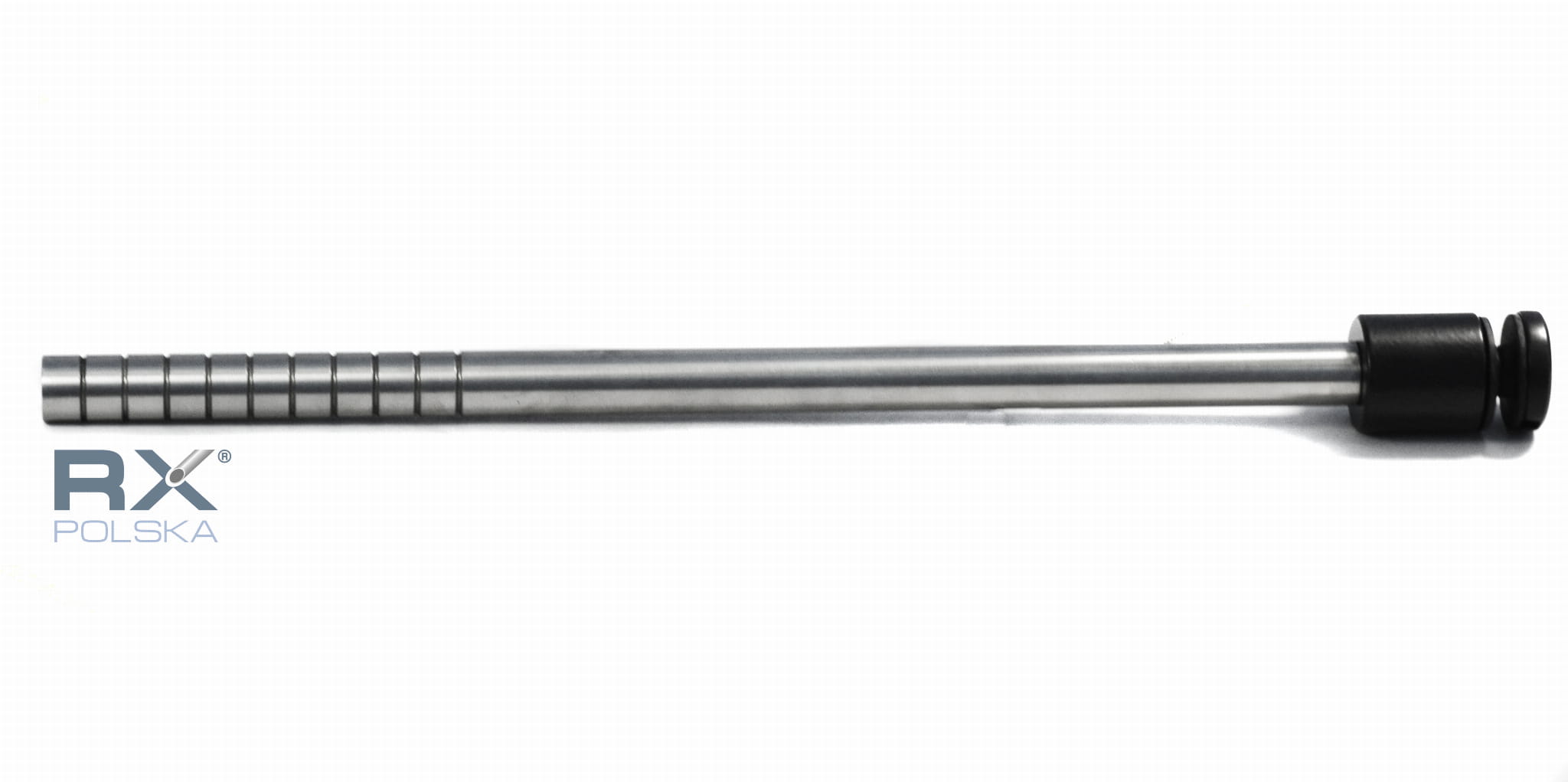

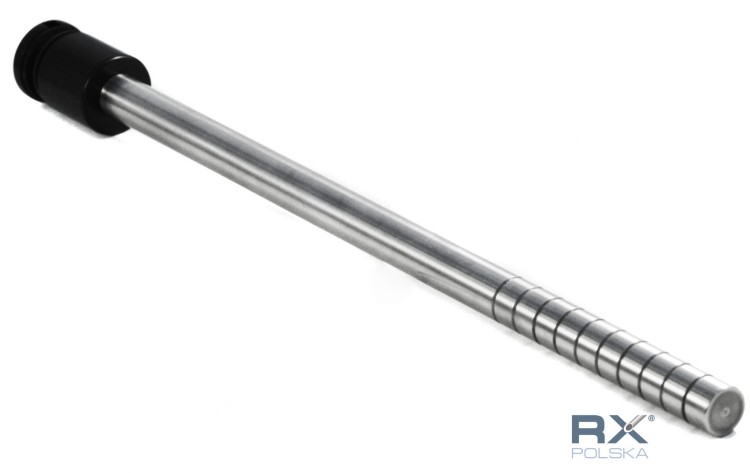

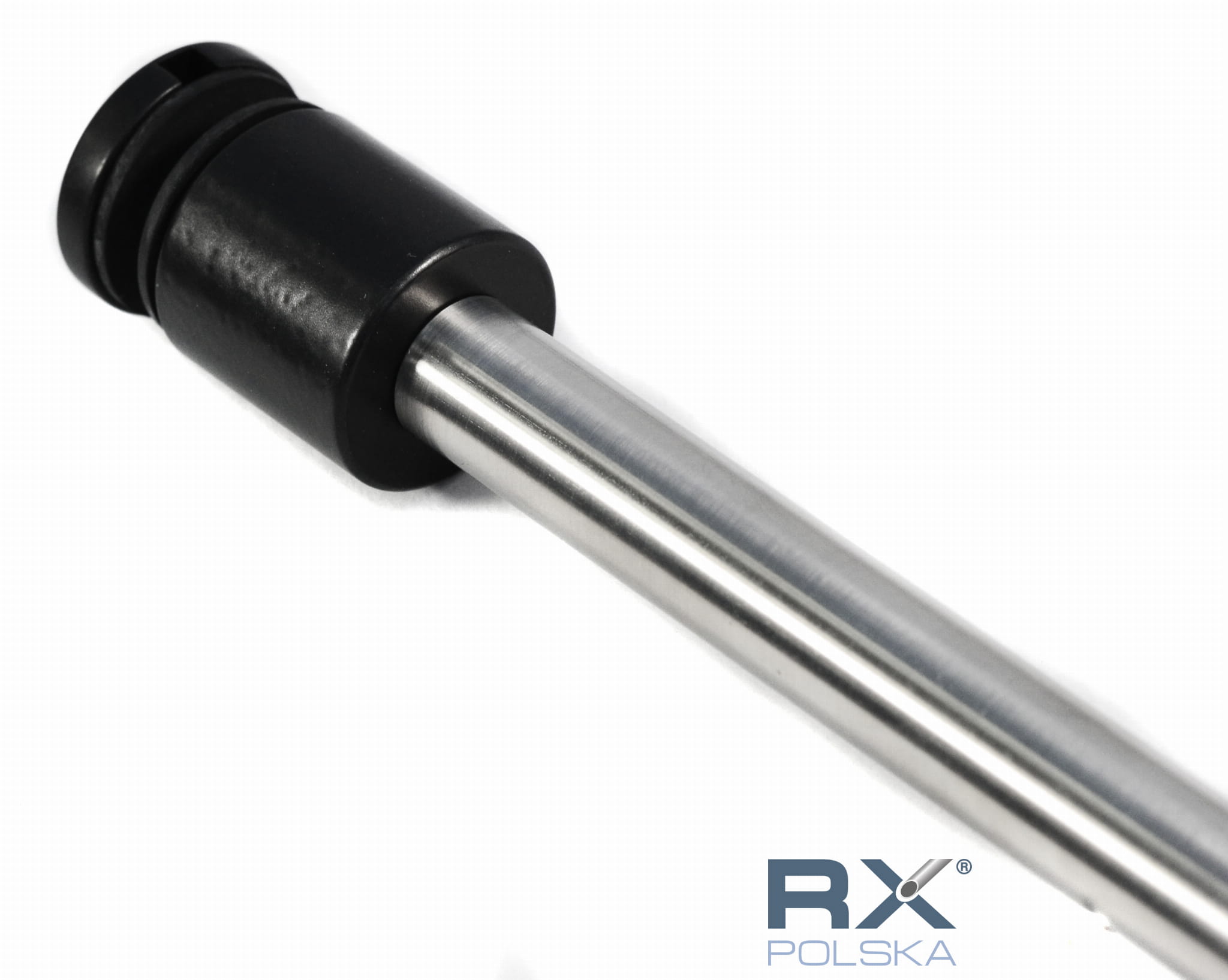

Glass holder Portfenetr fi 30mm with rod 16x320mm, AISI 304, RALL9005
Description

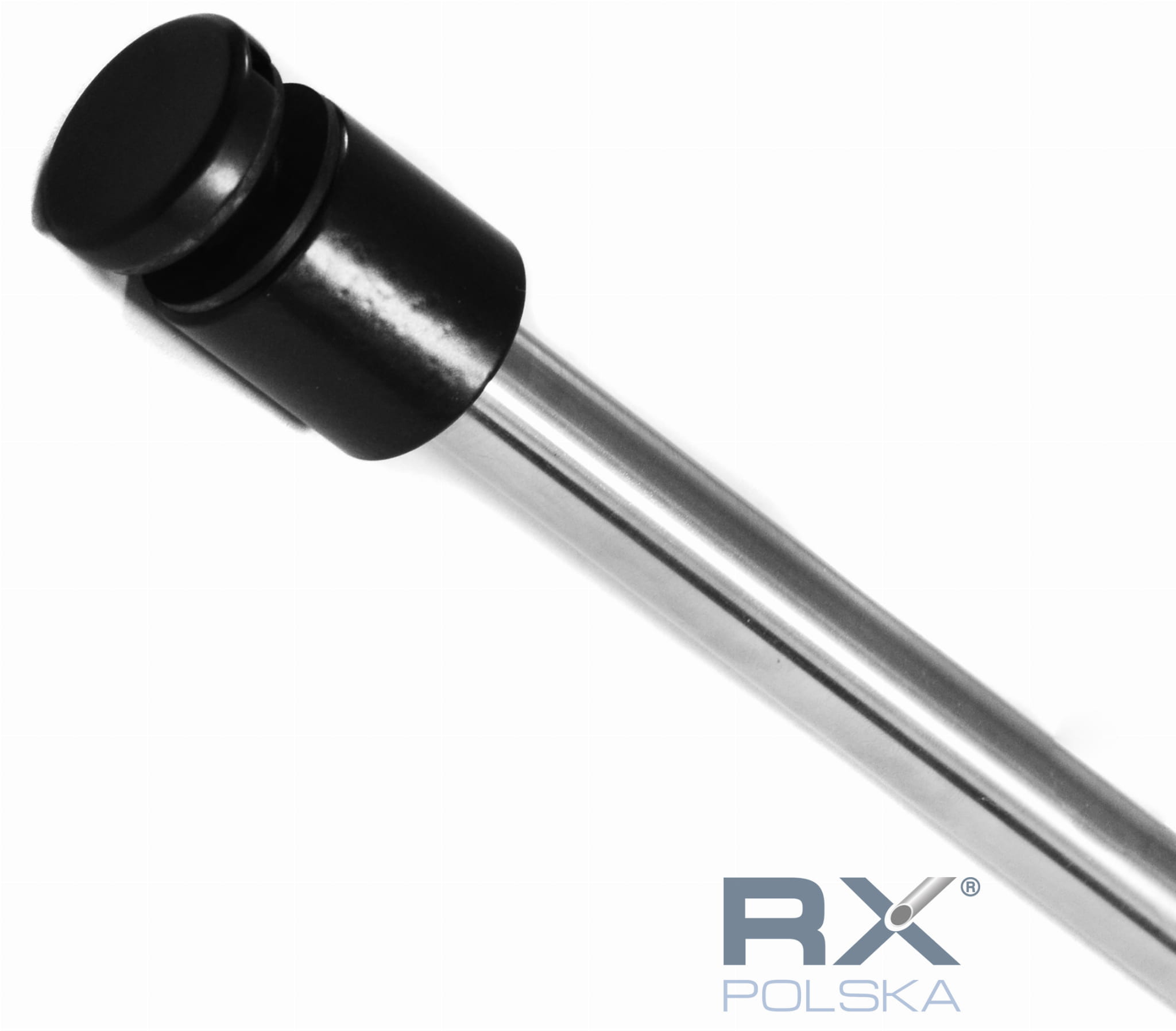

• Glass holder diameter ø 30 mm
• Spacer ø 30:
• L = 30mm with M8 threaded hole
• Installation on a 16x320mm rod (one side with M8 female thread)
• For glass from 6mm to 13.52mm
• Minimum mounting hole in the glass - ø 13 mm
• Installation on a flat surface
• Gaskets - EPDM rubber (black), thickness 2mm - included in the set
• Point handle powder painted in RAL 9005 matt
• Material: AISI 304 stainless steel
Mounting rod fi 16x320mm:
• On one side finished with M8x25mm internal thread to attach the point holder

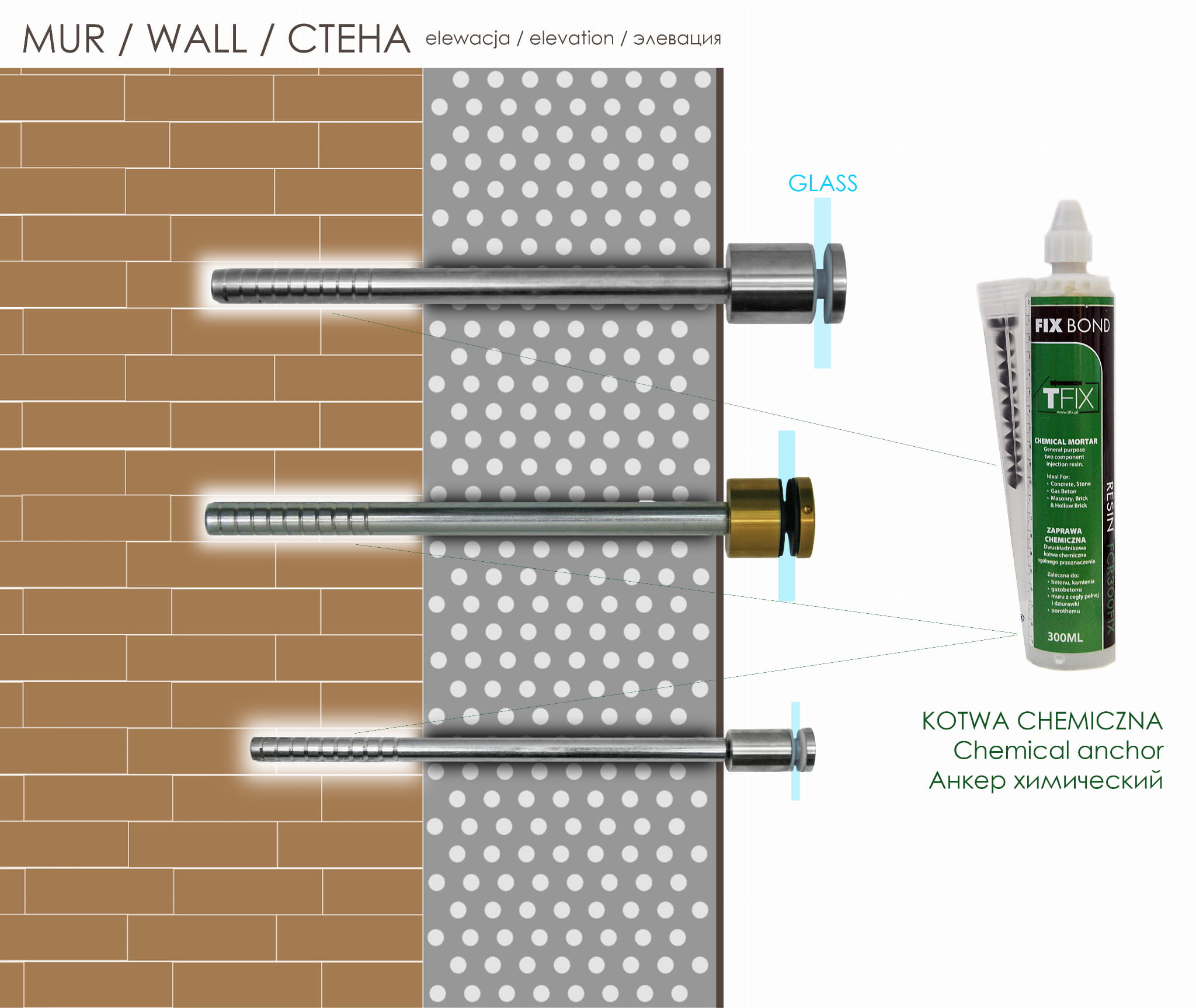

• On the other hand, with cuts for gluing to the bearing surface with a chemical anchor
• The length of the mounting rod is designed to fix the rotuli in a building with a facade up to 220mm thick.
• The remaining part of the rod is glued into reinforced concrete.
• The M8 female thread side after gluing into the wall must be flush with the facade. The spacer sleeve is connected to it using DIN 913 M8
• The length of the mounting rod can be modified depending on the thickness of the facade (ask the seller)
• Material - STEEL S235 + Fe/Zn7B/T2 (galvanized black steel)
