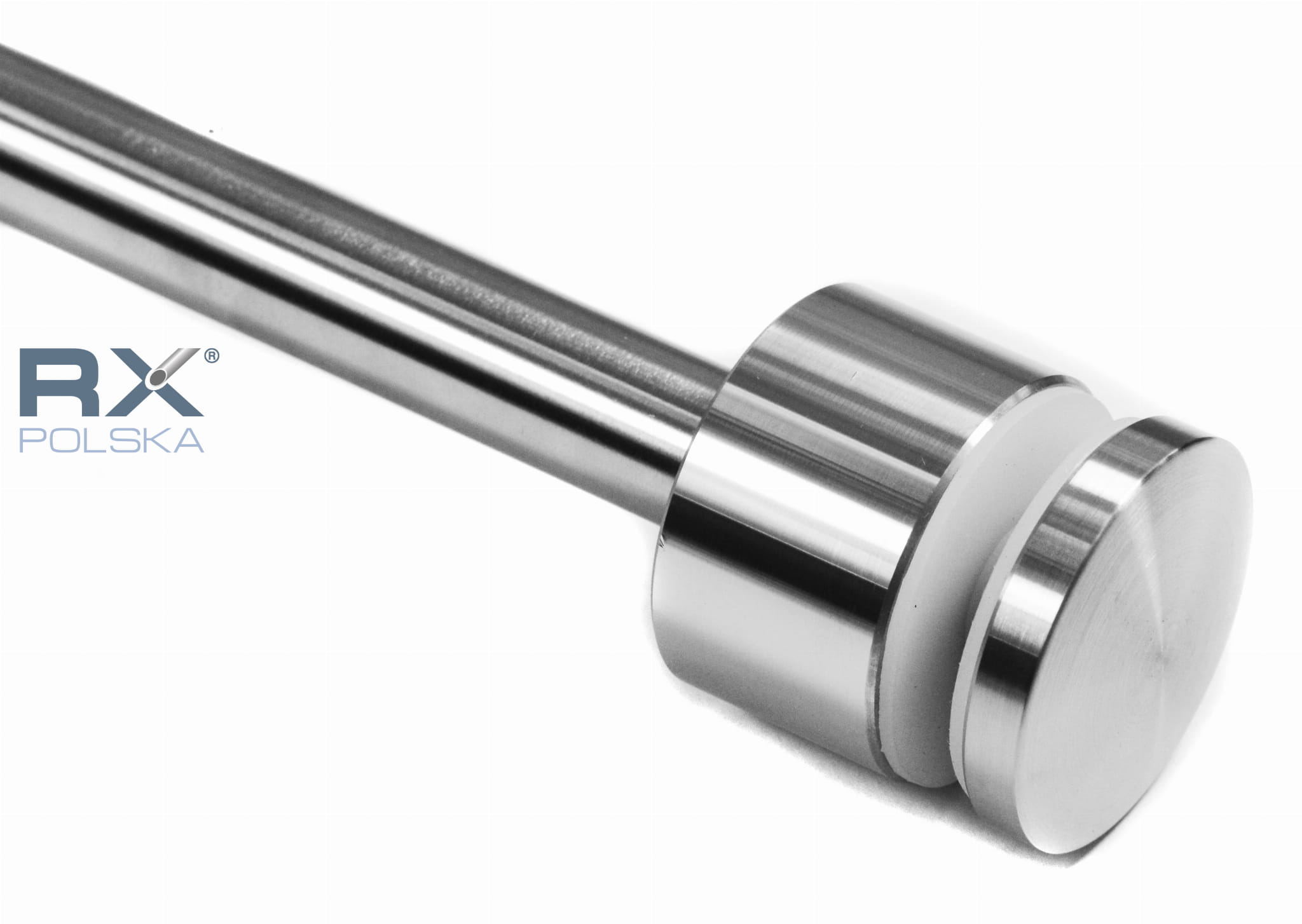

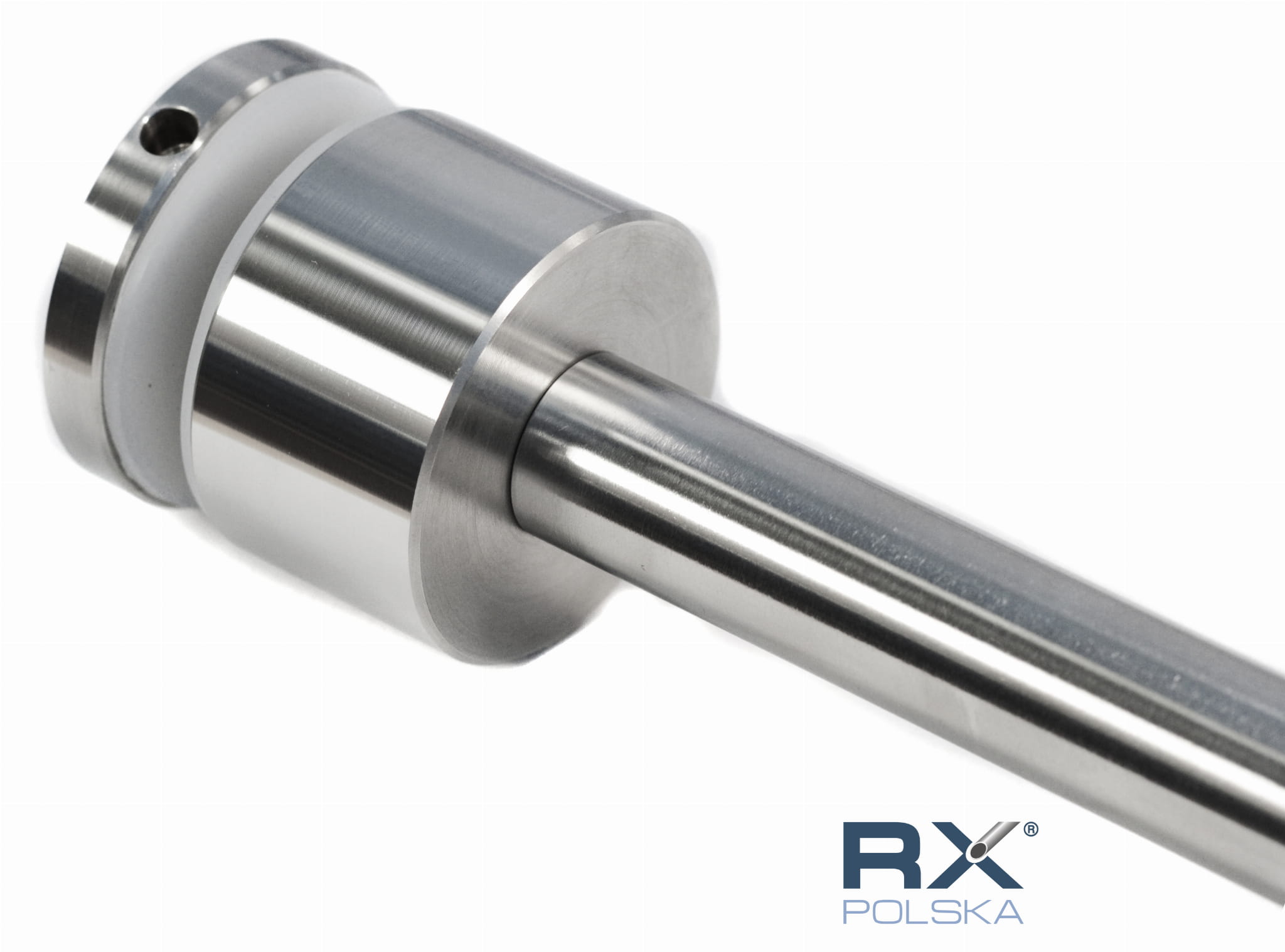

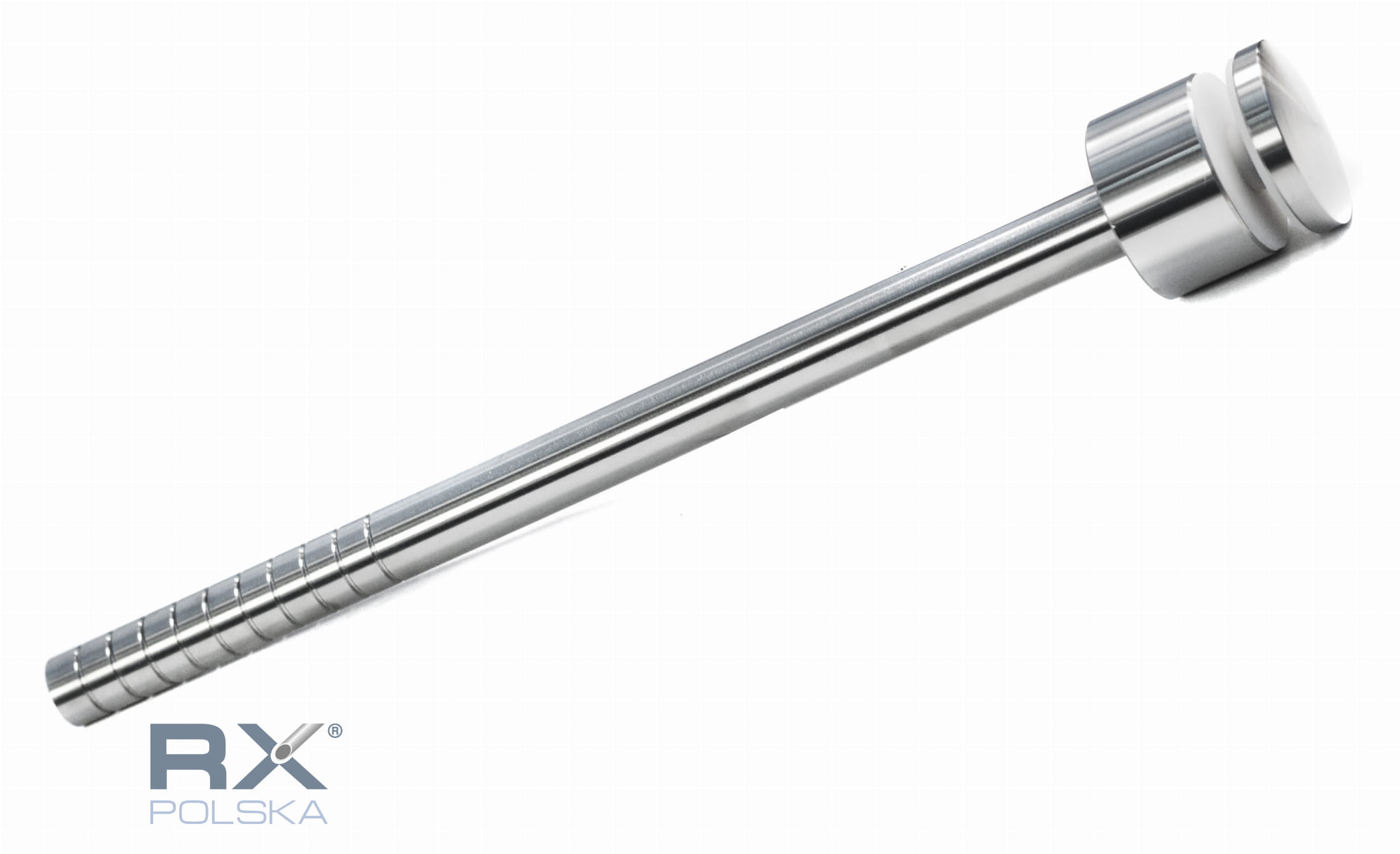

Glass holder Portfenetr fi 50mm with rod 20x320mm, AISI 304, SATIN
Description
• Glass holder diameter ø 50 mm
• Spacer ø 50:
• L = 10mm with M10 threaded hole
• L = 20mm with M10 threaded hole
• L = 30mm with M10 threaded hole
• Installation on a 20 x 320 mm rod (one side with M10 female thread)
• For glass from 8mm to 17.52mm
• Minimum mounting hole in the glass - ø 18 mm
• Installation on a flat surface
• Gaskets - silicone (milky) thickness 2mm - included in the set
• Satin surface (matte)
• Material: AISI 304 stainless steel

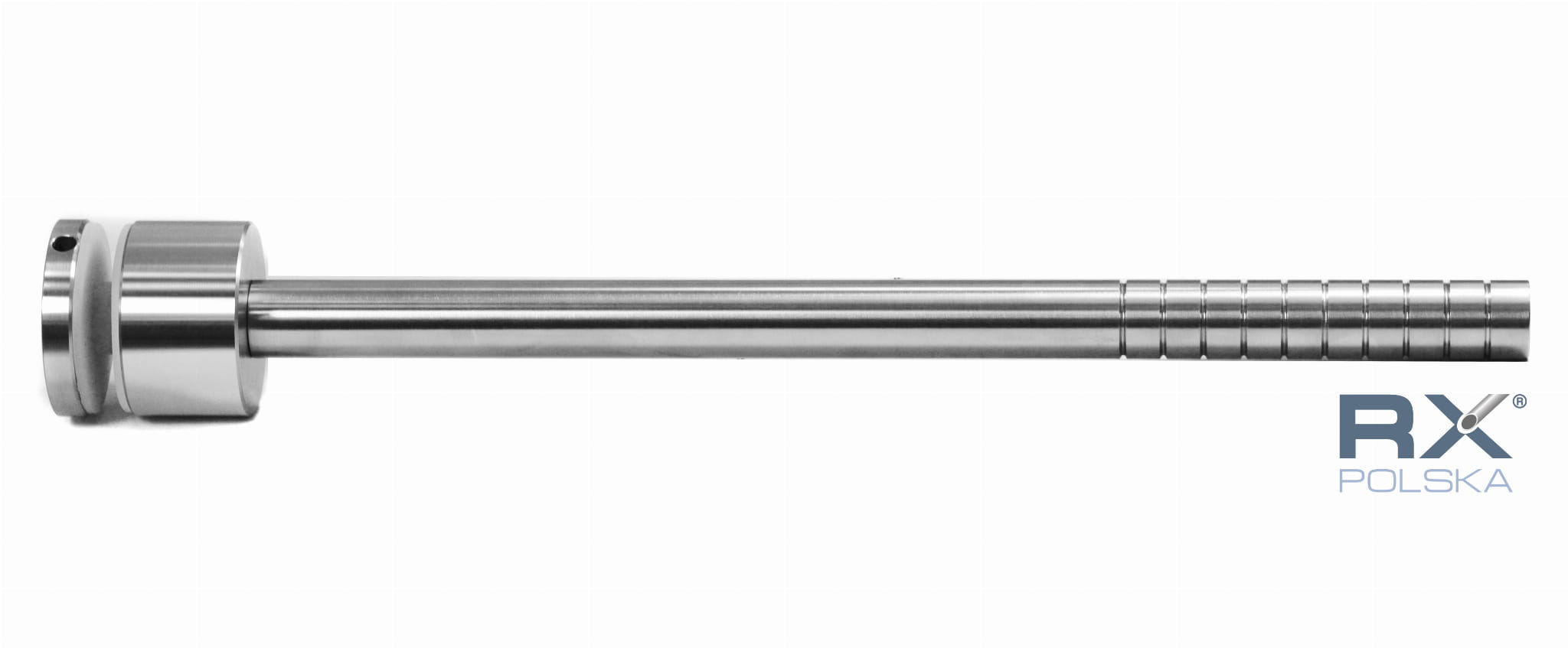

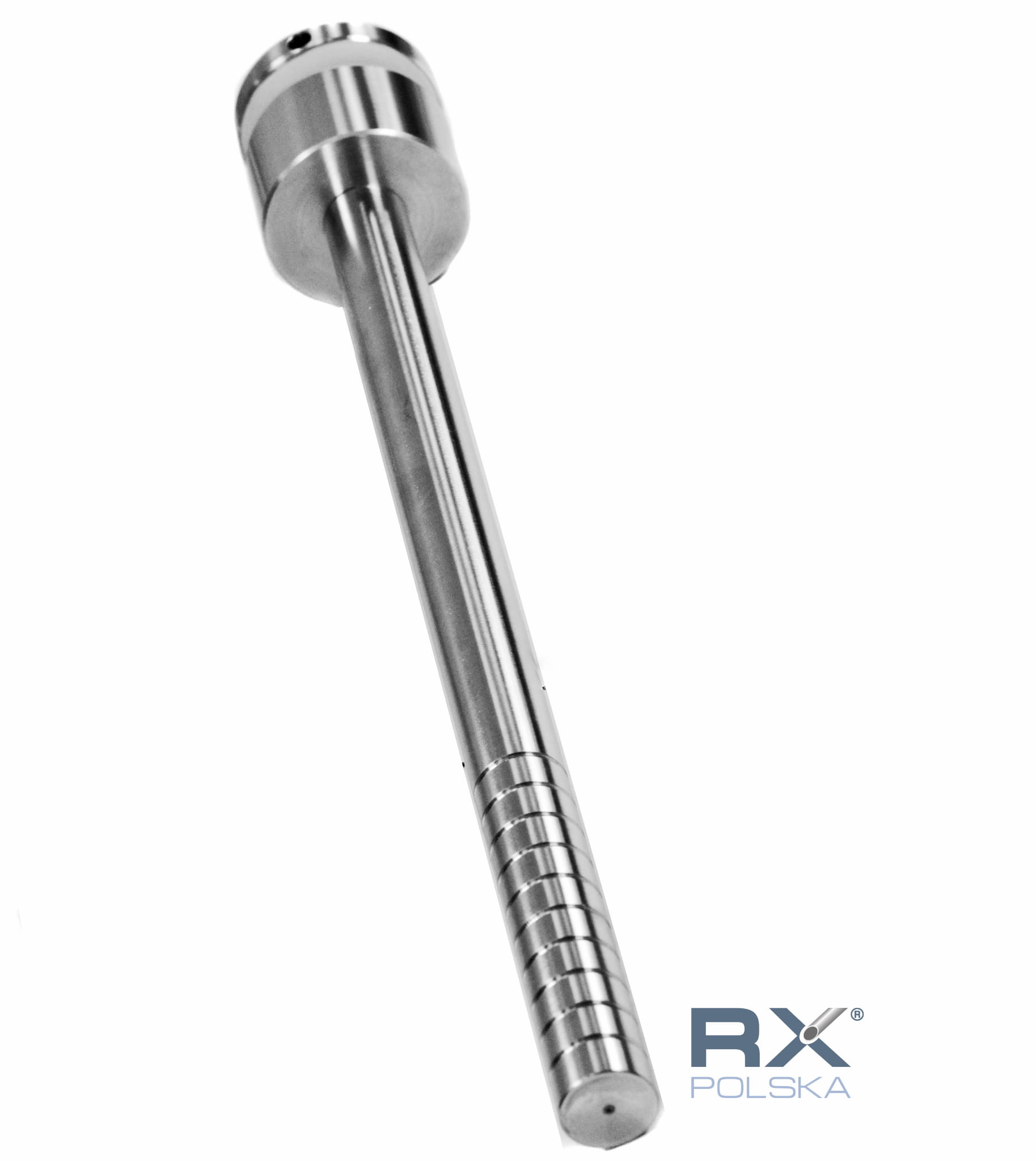

Mounting bar fi 20x320mm:
• On one side it is finished with an M10x30mm internal thread to attach the point holder

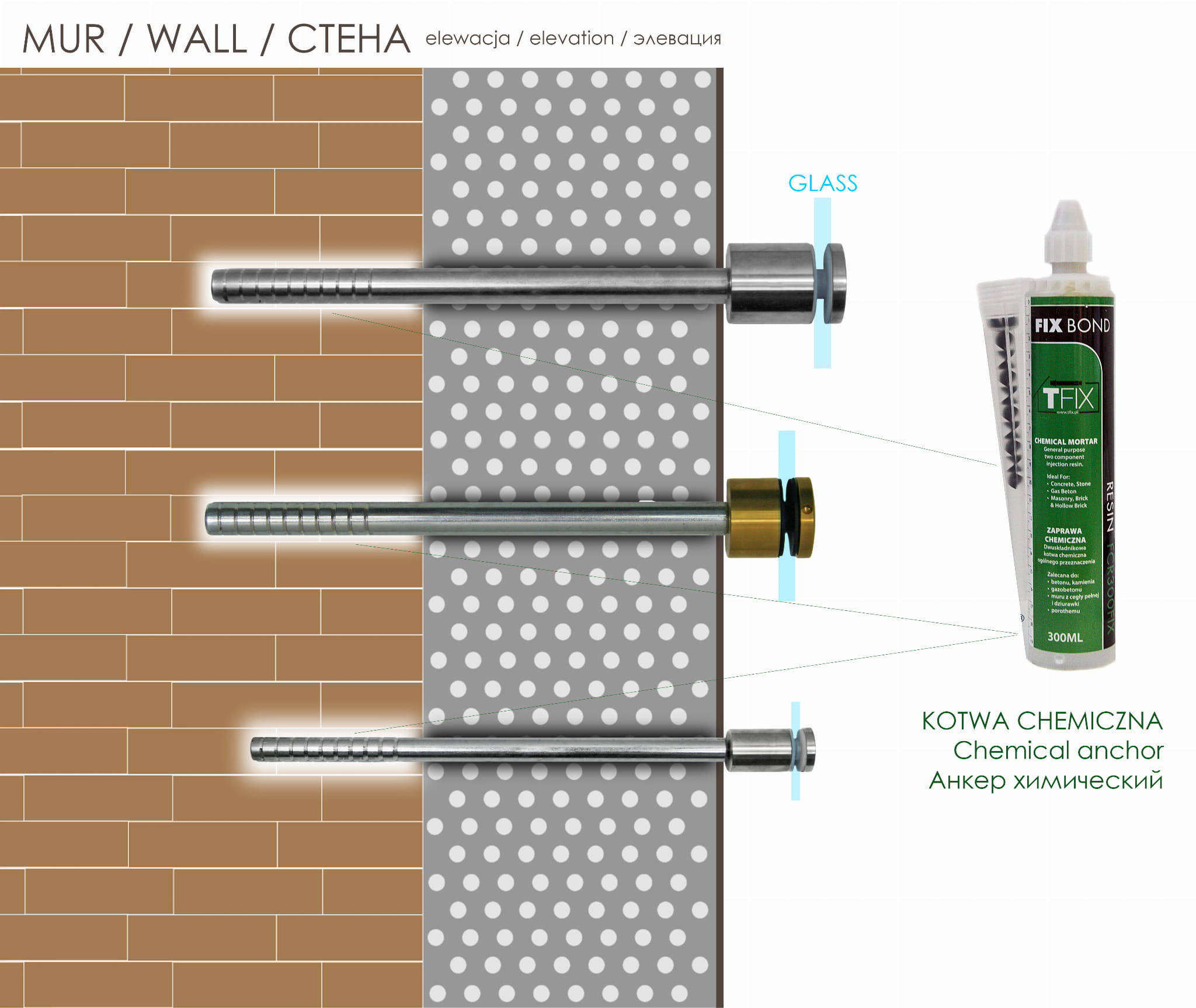

• On the other hand, with cuts for gluing to the bearing surface with a chemical anchor

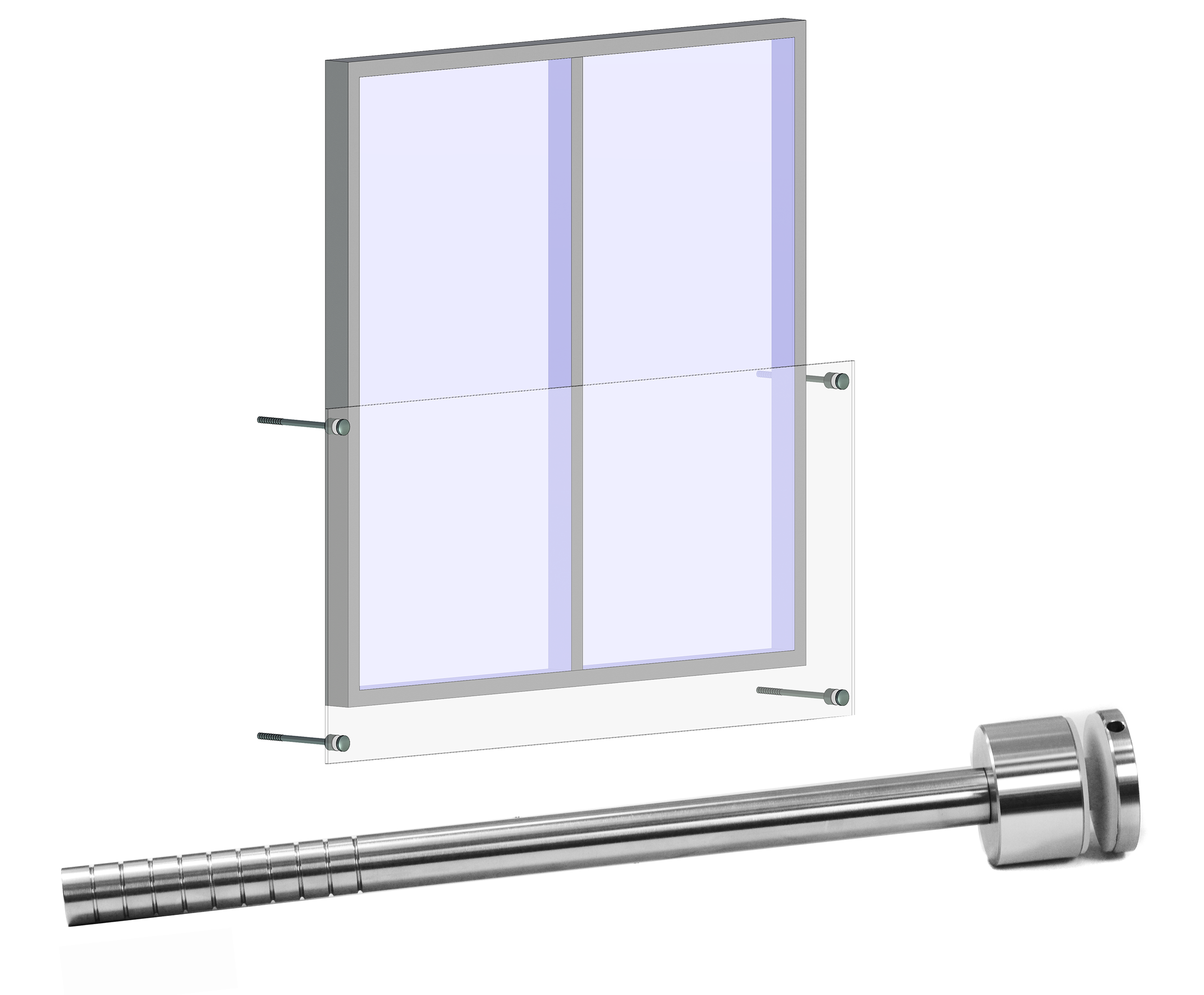

• The length of the mounting rod is designed to fix the rotuli in a building with a facade up to 220mm thick.
• The remaining part of the rod is glued into reinforced concrete.
• The bar from the M10 internal thread side after gluing into the wall must be flush with the facade. The spacer sleeve is connected to it using DIN 913 M10
• The length of the mounting rod can be modified depending on the thickness of the facade (ask the seller)
• Material - STEEL S235 + Fe/Zn7B/T2 (galvanized black steel)
