CN canopy fixing DOUBLE Ø 50mm, AISI 304, SATIN

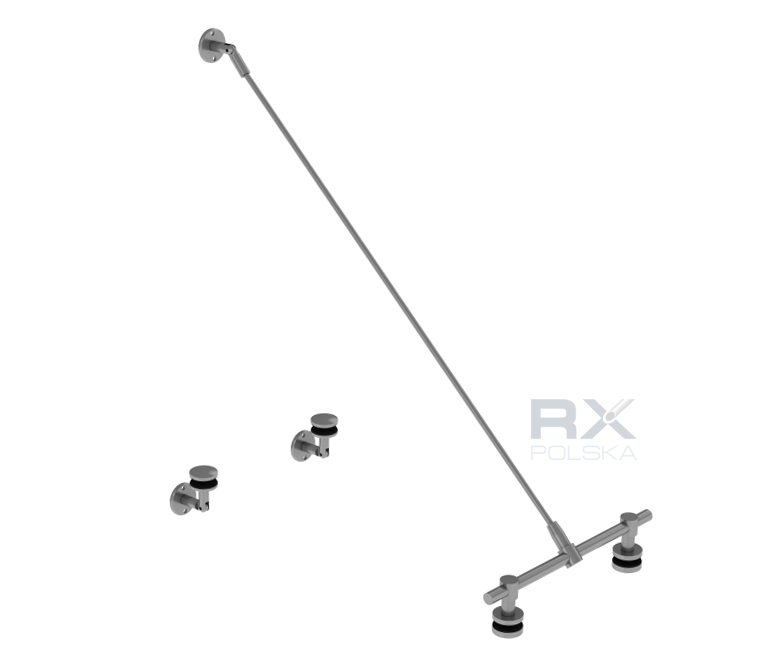

The composition of the set:
1 x wall mount - tension with a cover,
2 x wall mount - glass with a masking frame,

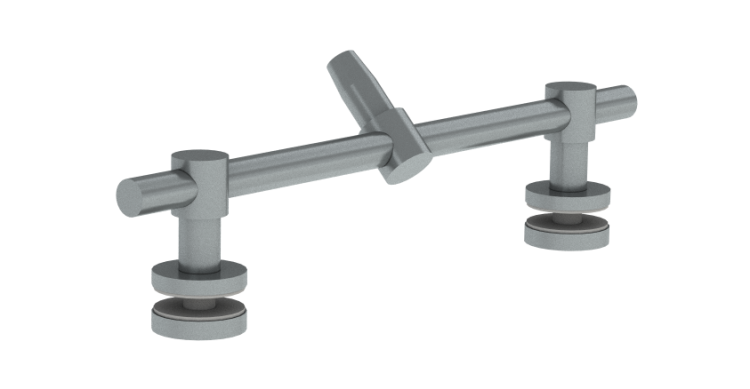

1 x tensioning-glass fixing,
1 x tension
1.5 m rubbers gasket between glass

• Mounting elements to the mounting surface on a disc Ø60mm with two holes Ø 8.5mm
• Glass mounting brackets - 50mm point holder
• Minimal openings in the glass - ø18 mm
• Glass thickness: 8mm-17.52mm
• Elements of joints made of a rod with a diameter of 18mm
• Type of steel - AISI 304
• Surface: satin
• Maximum reach of the visor: 1500mm
• Maximum distance between the slings: 1200mm

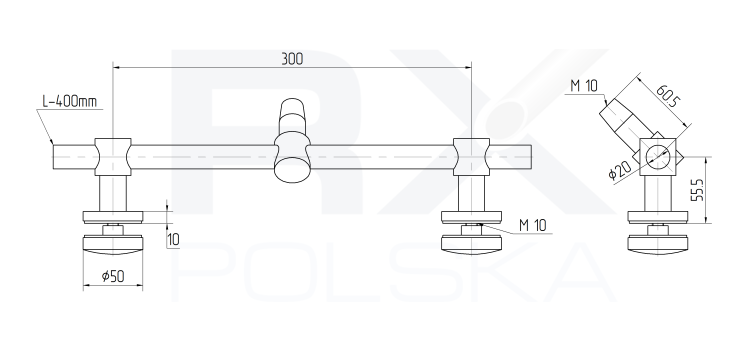

• The possibility of adjusting the installation of point holders on the mounting element "Tension - glass" - rod length in the set - 400mm
• Standard draw length 1000mm
• Gasket betwen glass "T" double canopy, SILICONE TRANSPARENT - 1500mm
• Possibility to make a tension of a different size - the length of a tension up to 1500mm (please write the length of a tension in the "Remarks to the order")
• The tension is made of a rod fi 10mm with threads on the ends M10 right / M10 left
