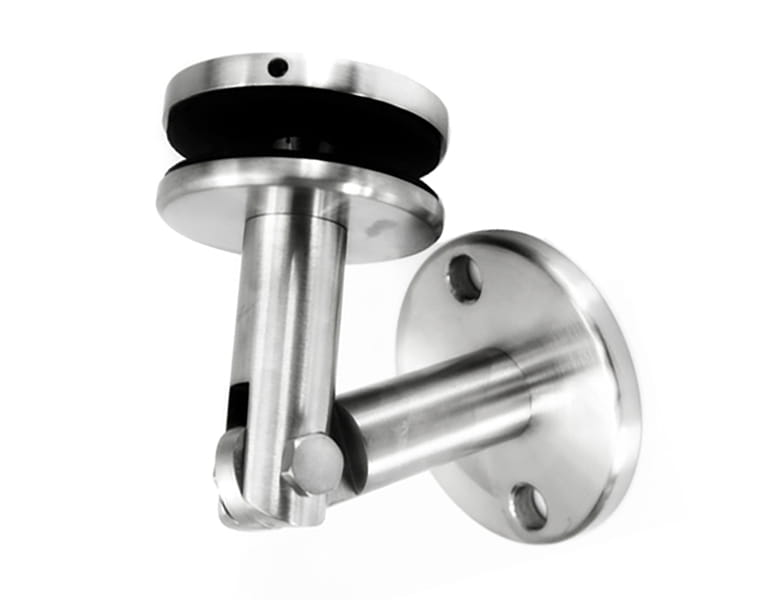

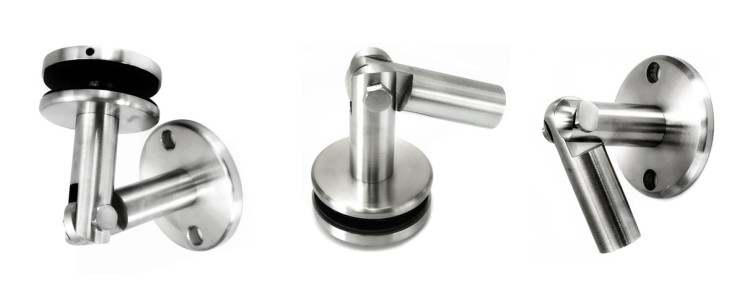

CN canopy fixing SINGLE Ø 50mm, AISI 304, SATIN

Go to Product feedback

€43.93

Shipping costs are not included in the price.

Wybierz wariant produktu:

Individual variants may differ in price

Choose a tension length

Select

Without tension

0,86m

1,00m

1,16m

1,30m

1,50m

Below I'll write an another length

Another length of tension (0 - 1,5m) Optional

Quantity

szt.

Availability:

running out

Shipping time: 5 days

Description

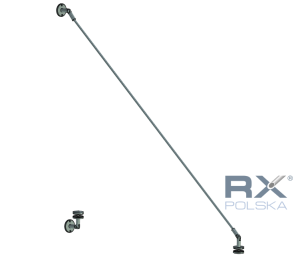

The composition of the set:
1 x wall mount - tension with a cover
1 x wall mount - glass with a masking frame
1 x tensioning-glass fixing
1 x tension

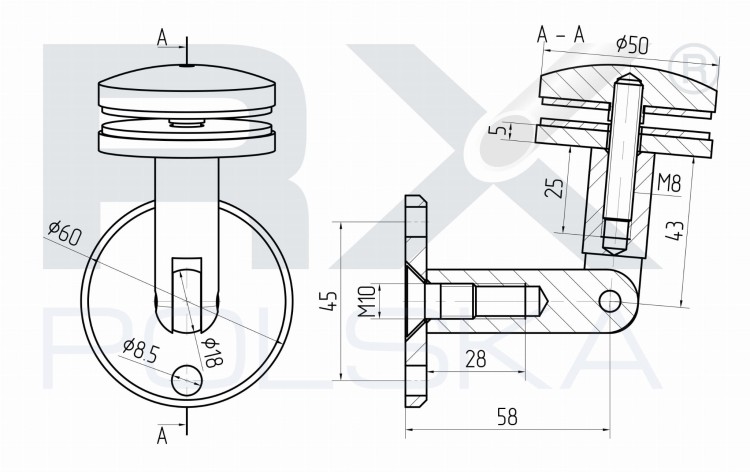

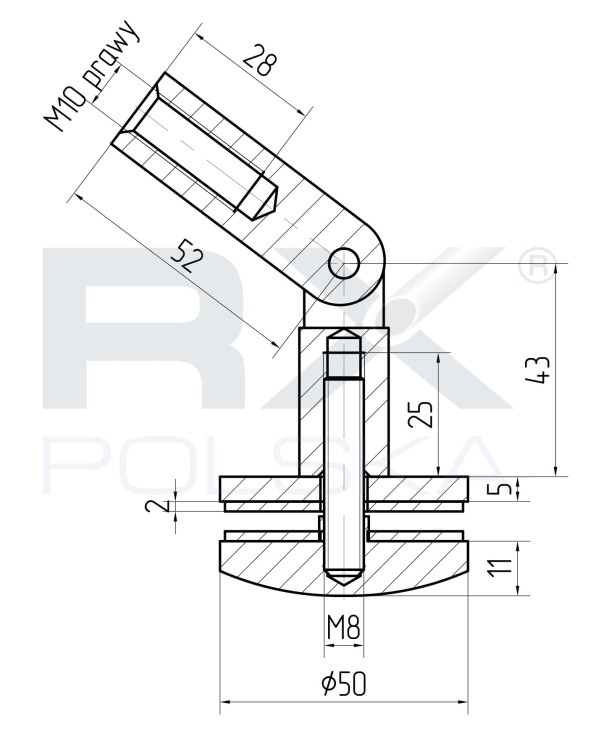

• Mounting elements to the mounting surface on a disc Ø60mm with two holes Ø 8.5mm
• Glass mounting brackets - 50mm fi spot
• Minimal openings in glass - ø18 mm
• Glass thickness: 8mm-17.52mm
• Joint elements made of rod with a diameter of 18mm
• Type of steel - AISI 304
• Surface: ground (matte)

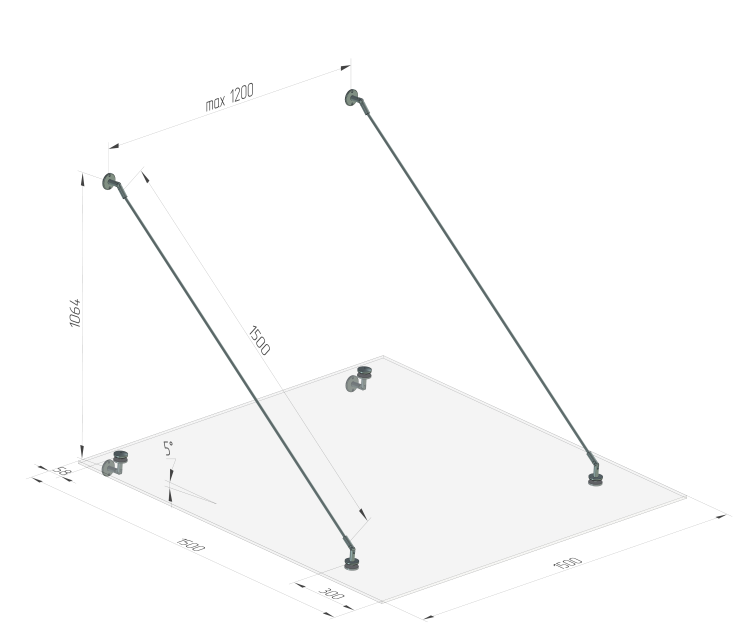

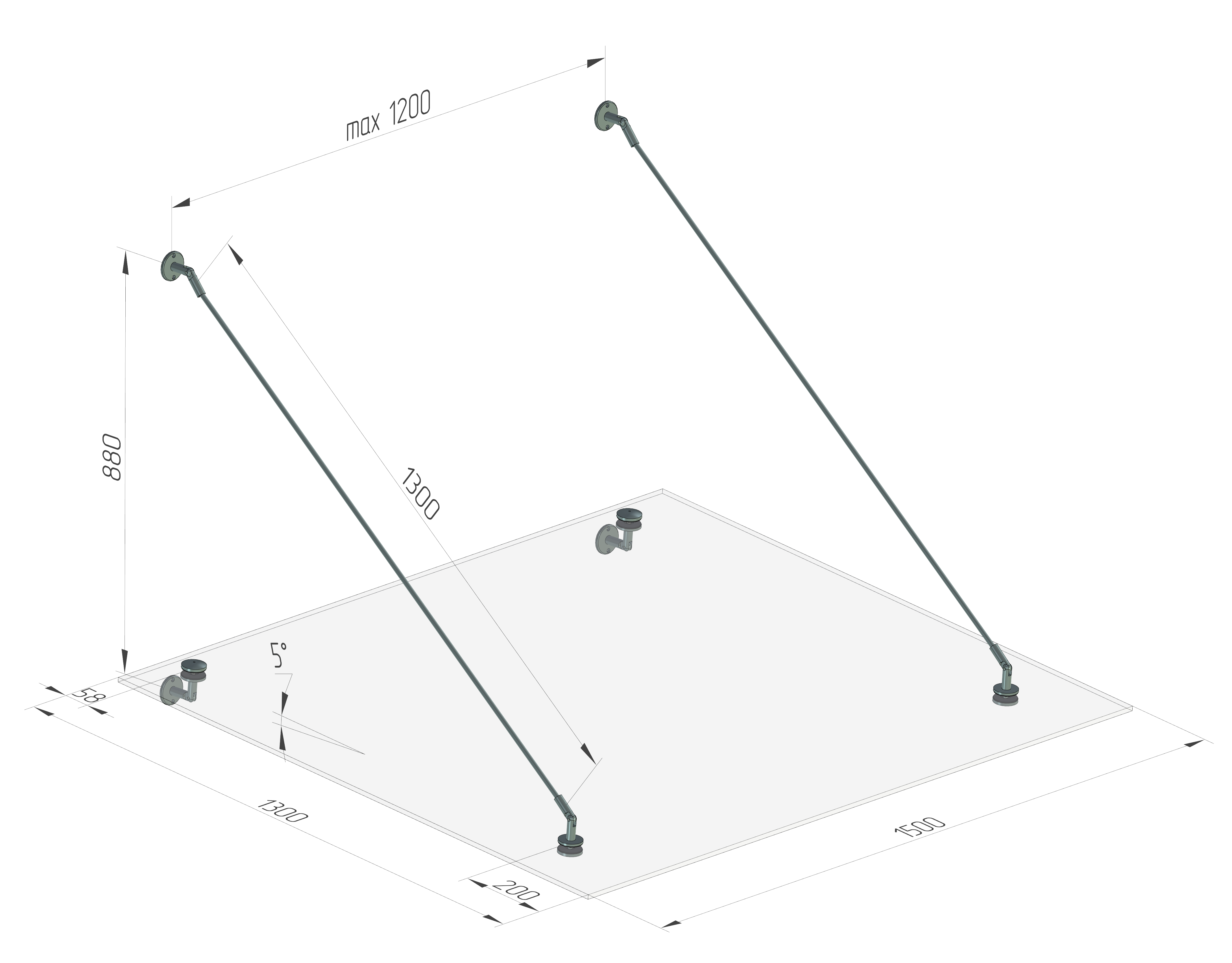

• Maximum reach of the visor: 1500mm
• Maximum distance between the slings: 1200mm
• Standard pull length 1000mm
• Possibility to fabricate a different dimension - pull length up to 1500mm (please specify length in "Remarks to order")

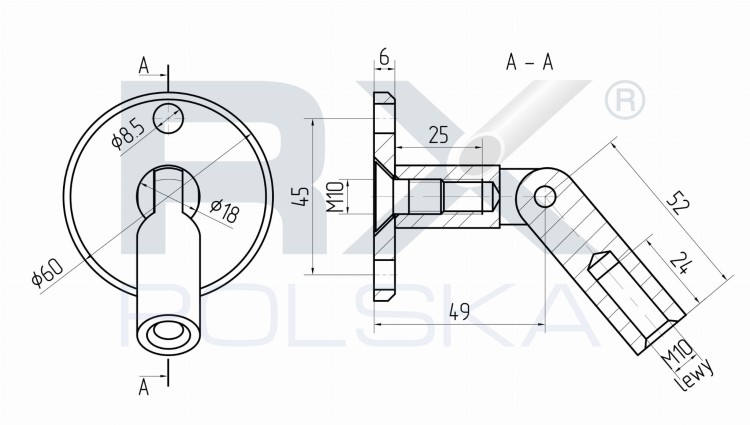

• Tension made of rod fi 10mm with threads at ends M10 right / M10 left
