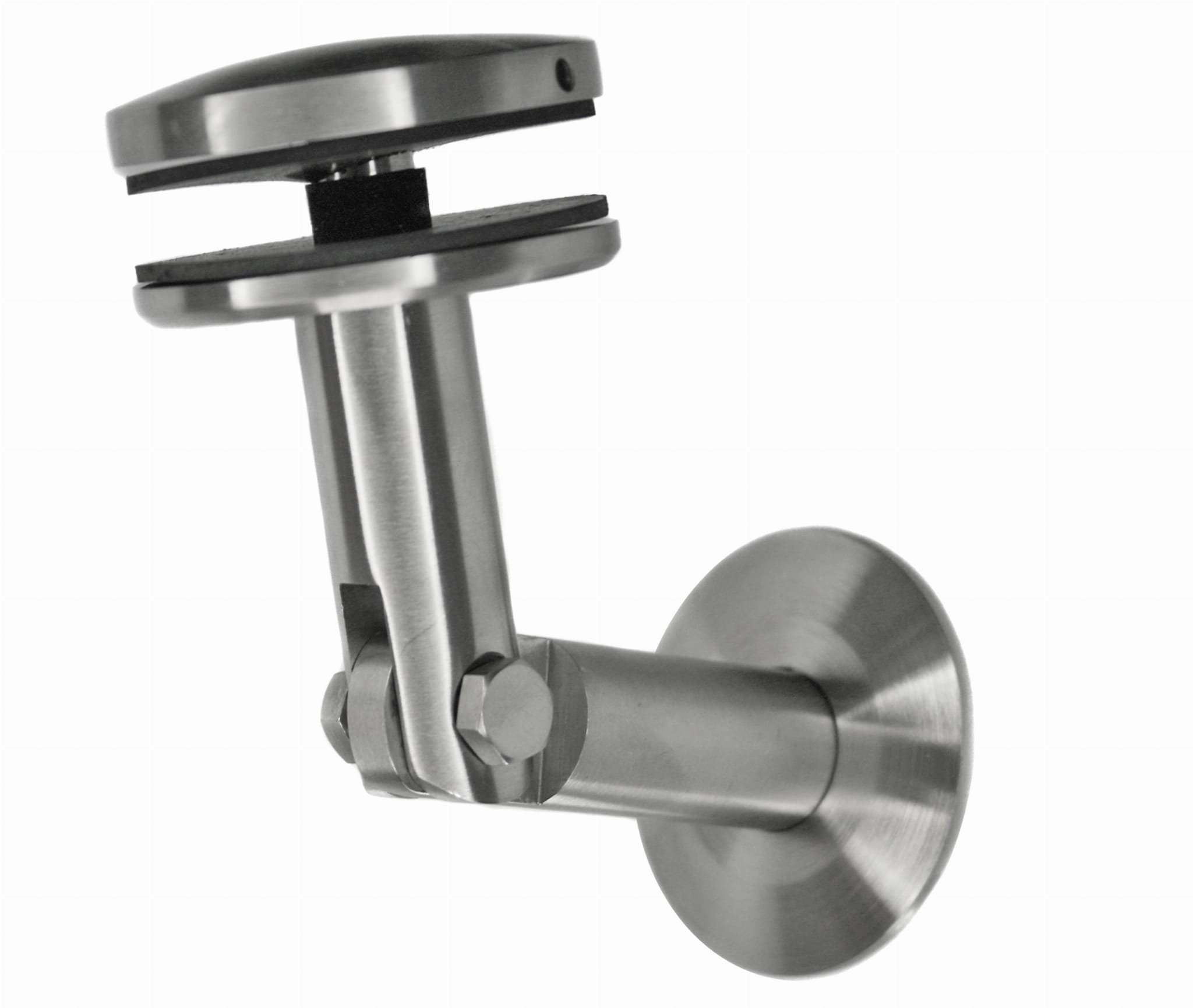

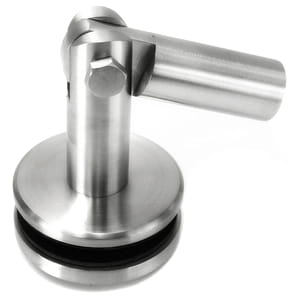

CN canopy fixing SINGLE - A Ø 50mm, AISI 304, SATIN

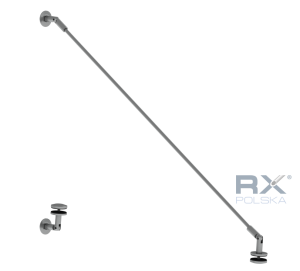

The composition of the set:
1 x wall mount - tension with a cover
1 x wall mount - glass with a masking frame
1 x tensioning-glass fixing
1 x tension

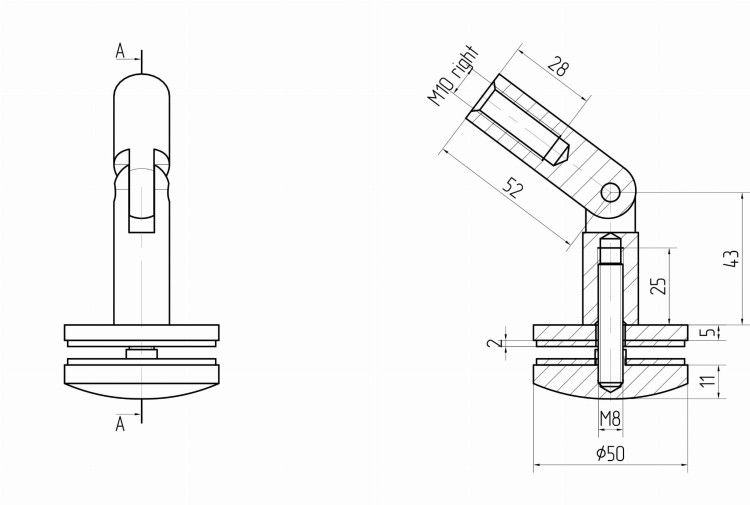

• Assembly of elements to the mounting surface on single M10 rods
• Glass holder - 50mm
• Minimal holes in the glass - ø18 mm
• Glass thickness: 8mm-17.52mm
• Elements of joints made of a rod with a diameter of 18mm
• Type of steel - AISI 304
• Surface: satin (matte)

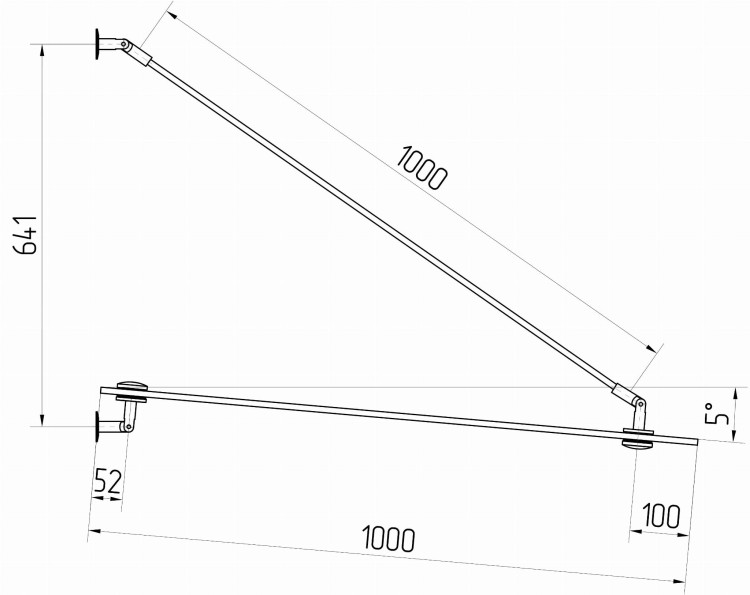

• Maximum reach of the visor: 1500mm
• Maximum distance between the slings: 1200mm
• Standard tension length 1000mm
• Possibility to make a tension of a different size - the length of a tension up to 1500mm in price (please write the length of the tension in the "Remarks to the order")
• The tension is made of a rod fi 10mm with threads on the ends M10 right / M10 left
