Glass adaptor 50/8mm thread M12, AISI 304, SATIN

Go to Product feedback
with VAT without VAT
Price €7.88
incl. 23% VAT

Shipping costs are not included in the price.

Wybierz wariant produktu:

Individual variants may differ in price

Select ROD standard ROD M12x100mm DIN 913 A2 (+€1.21)
szt.
Availability:
product-availability-module running out
Shipping time: 24 h

Product features

  • Diameter Ø 50mm
  • Spacer 8mm thread M12
  • Thickness of glass 8-21,52mm
  • Minimum glass opening Ø 20mm
  • Rod mounting M12
  • Seals EPDM black
  • Steel Stainless AISI 304
  • Surface Sanded
  • Mounting to surfaces Flat surface
  • Type of adjustment -
  • Additional information -
  • Adjustment No

Description

  • Diameter of the handle ø 50 mm
  • Spacer sleeve L = 8 mm - sleeve with thread hole M12
  • Mounting on the M12 rod
  • For 8-34 mm glass
  • The minimum mounting hole in the glass - ø 18 mm
  • Mounting to a flat surface
  • Pad - EPDM (BLACK) - thickness 2 mm - set included
  • Satin surface (matte)
  • Material: stainless steel AISI 304
  • Mounting rod M12x45 mm in the set - it is possible to exchange it for longer (ask the seller)

Files to download

File icon GH_050_01M12.pdf 88.41 kB

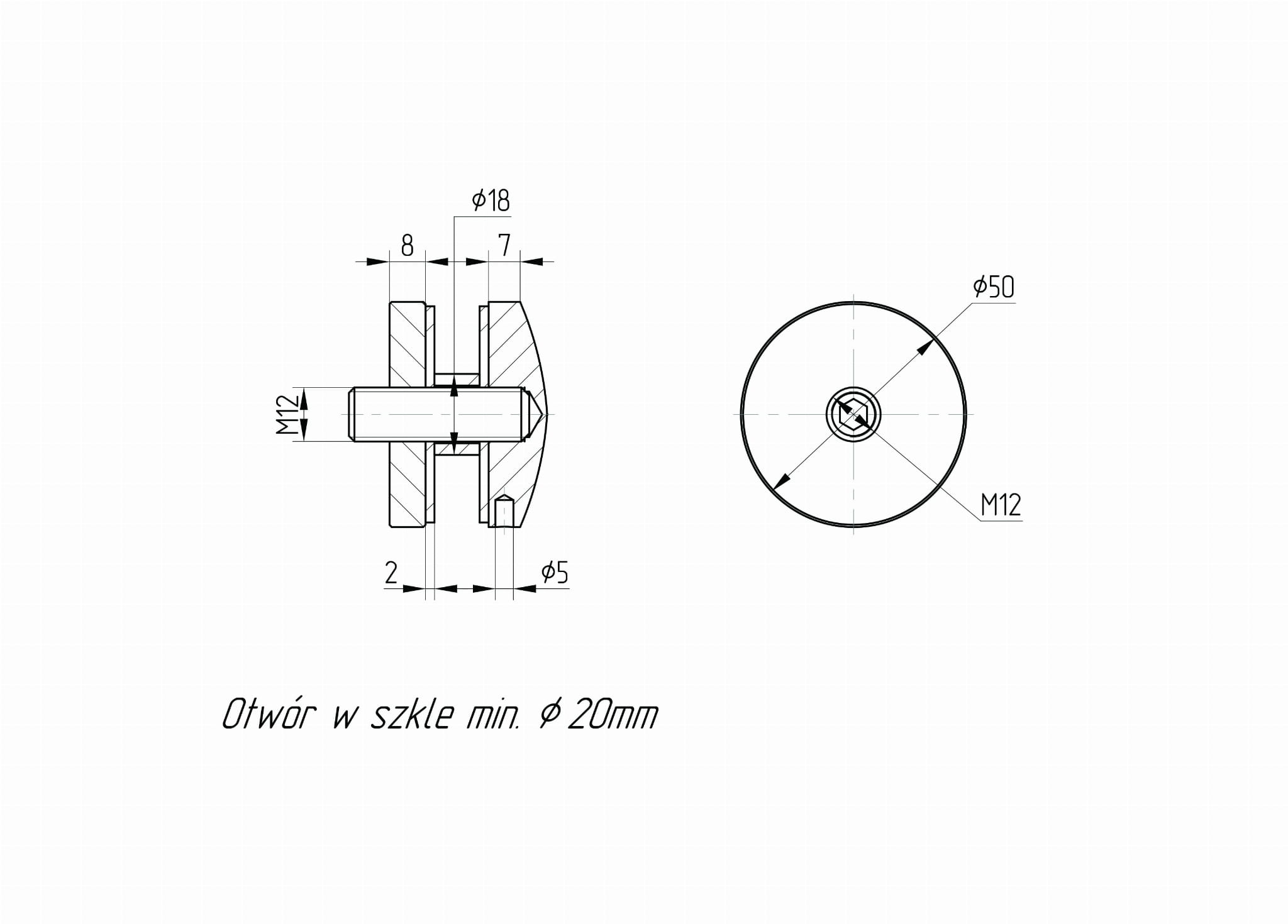

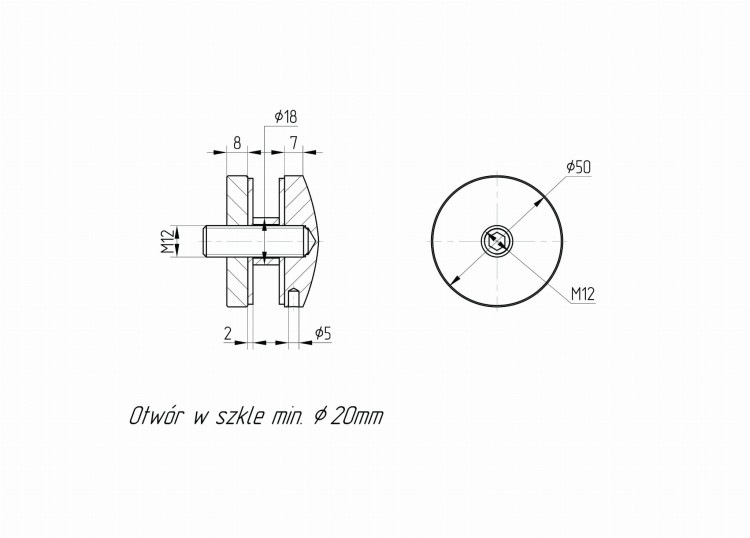

Technical drawing
