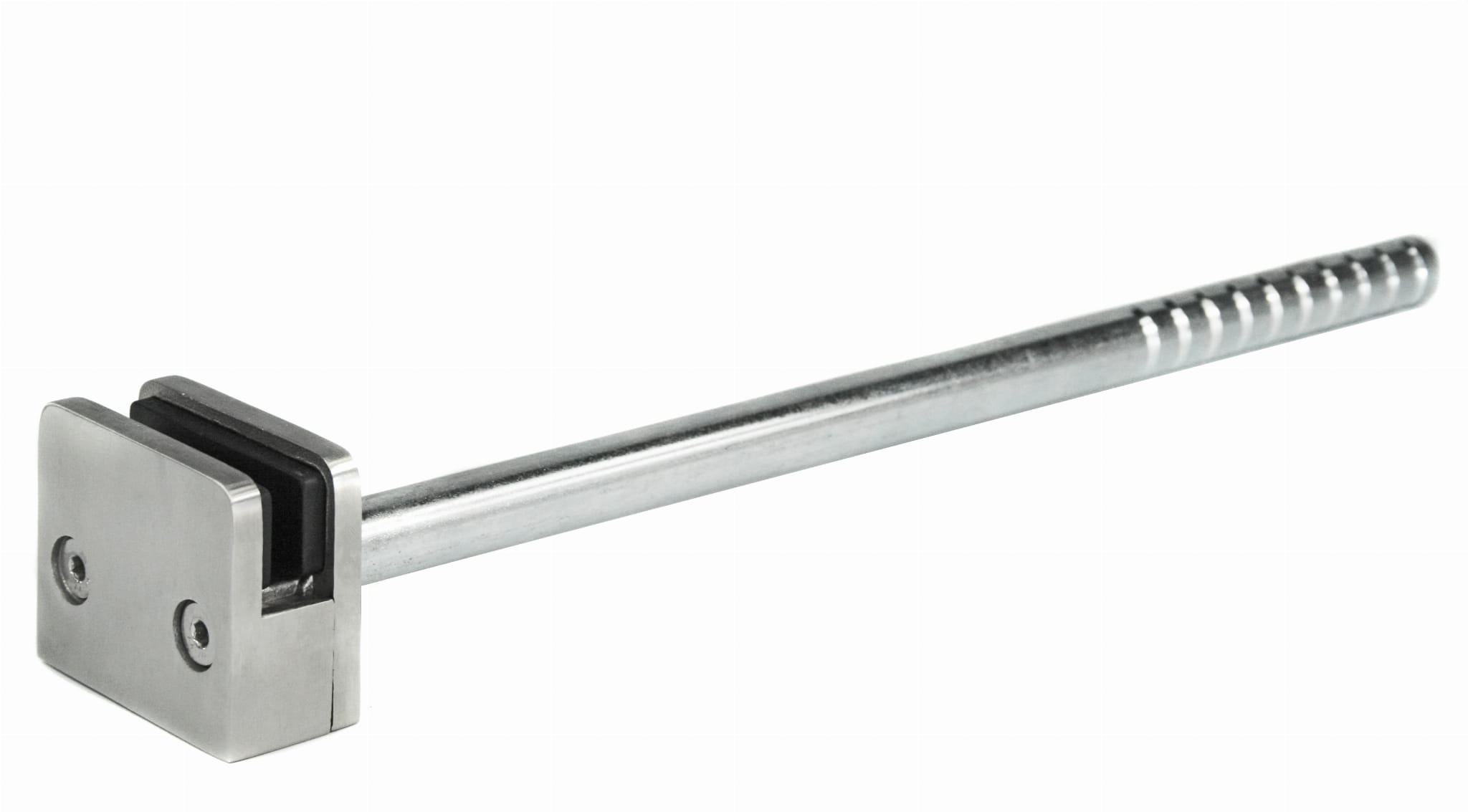

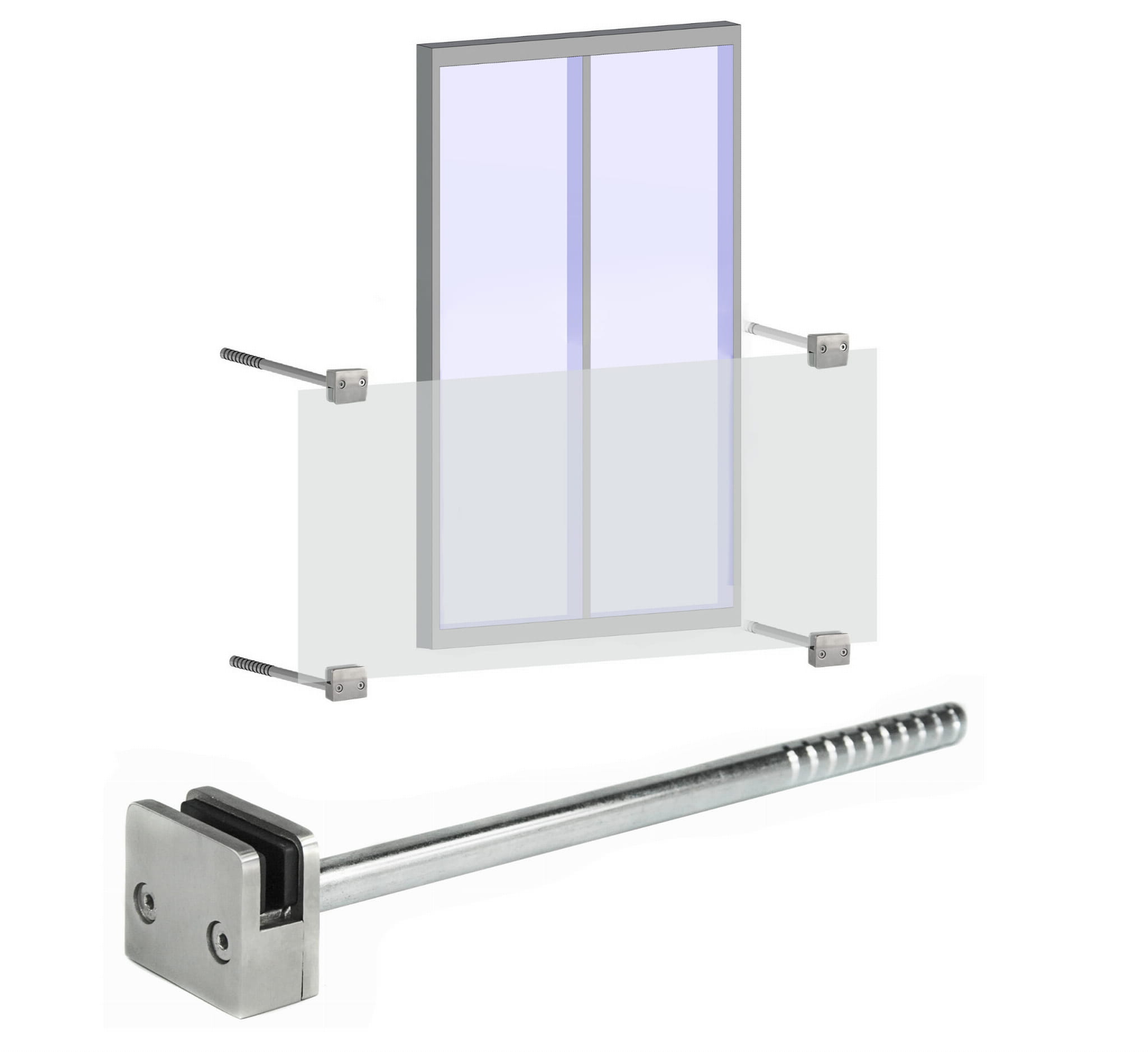

Glass clamp for faux balconies 50x60mm with roud fi 16x320mm, AISI 316, SATIN
Description

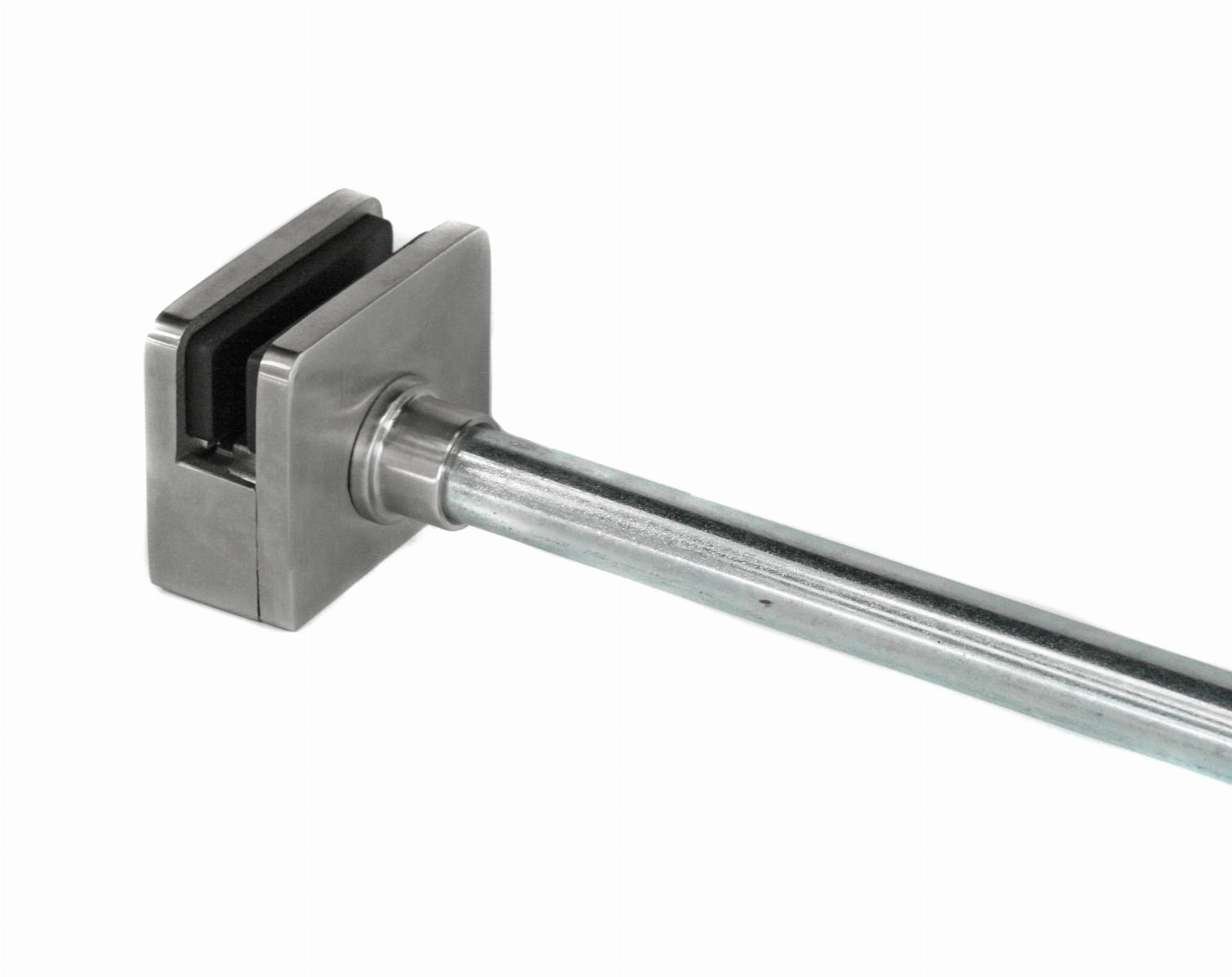

Glass clamp 50x60mm:
- Glass thickness from 6mm-12.76mm
- Satin surface (matte)
- Material - stainless steel AISI 316
- The buckle holder connects to the mounting bar with a DIN 912 M8x20mm screw

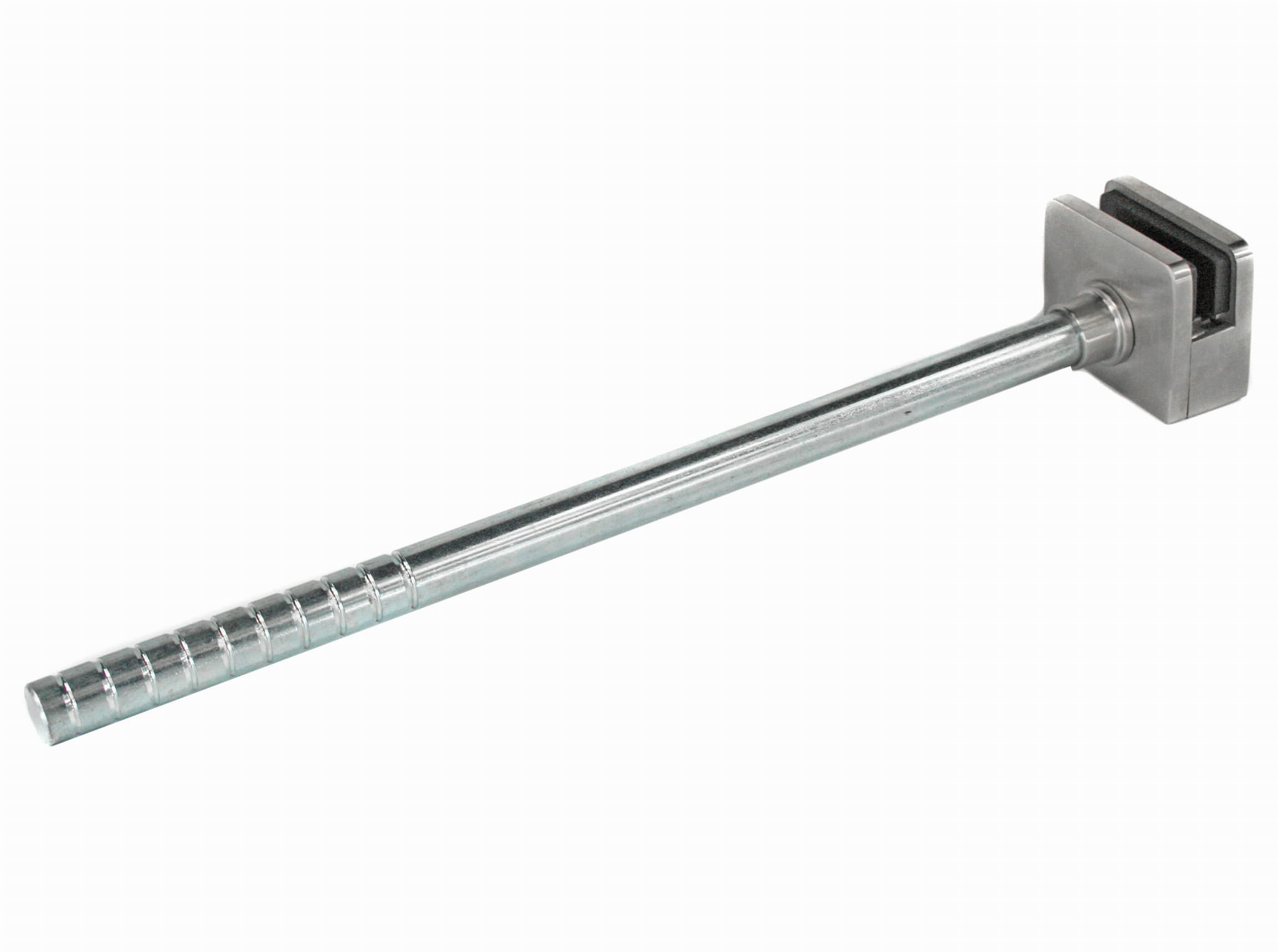

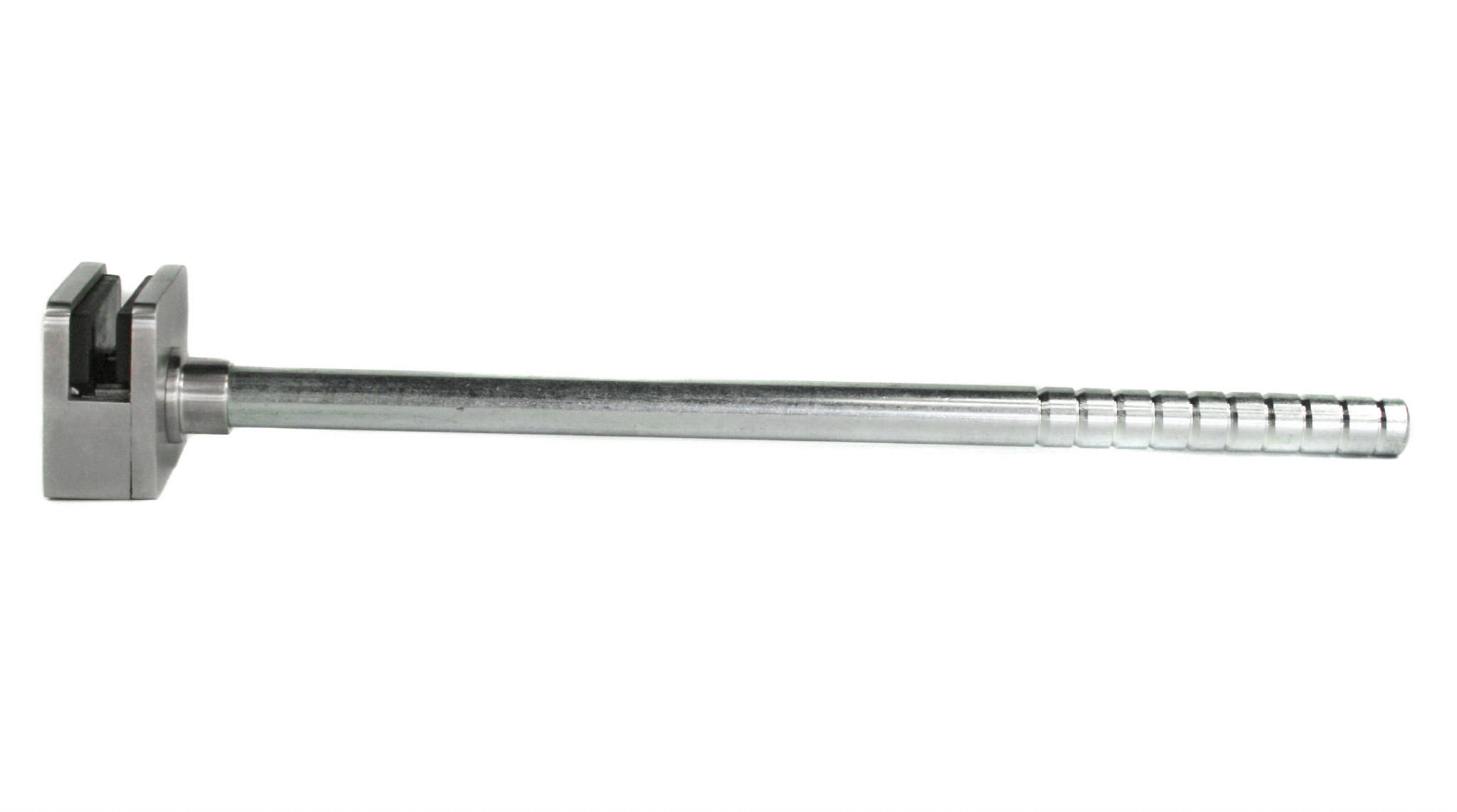

Mounting rod fi 16x320mm:
- One side ended with an M8x25mm internal thread for attaching a point holder
- On the other hand with notches to be glued into the bearing surface by means of a chemical anchor
- The length of the mounting bar is designed to fix the rotula in a building with an elevation up to a maximum thickness of 220mm.
- The rest of the anchor is glued into reinforced concrete.
- The rod on the side with the M8 female thread, after gluing to the wall, must be flush with the façade. A distance sleeve is connected to it with DIN 913 M8
- The length of the mounting bar can be modified depending on the thickness of the facade (ask the seller)
- Material - STEEL S235 plus Fe/Zn7B/T2 (black galvanized steel)
