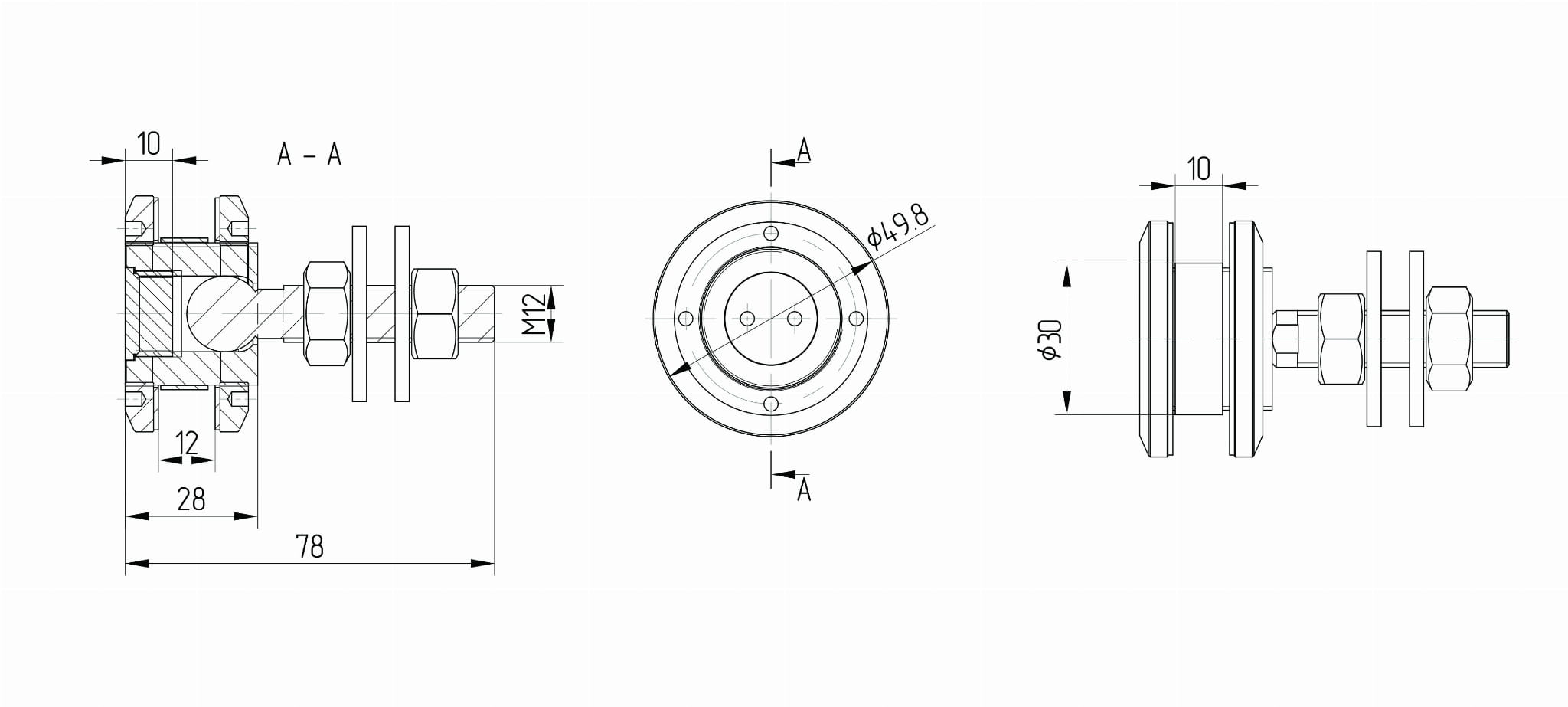

  • Rotula przegub fi 50mm.jpg
  • IMG_3179.JPG
  • IMG_3180.JPG
  • IMG_3182.JPG

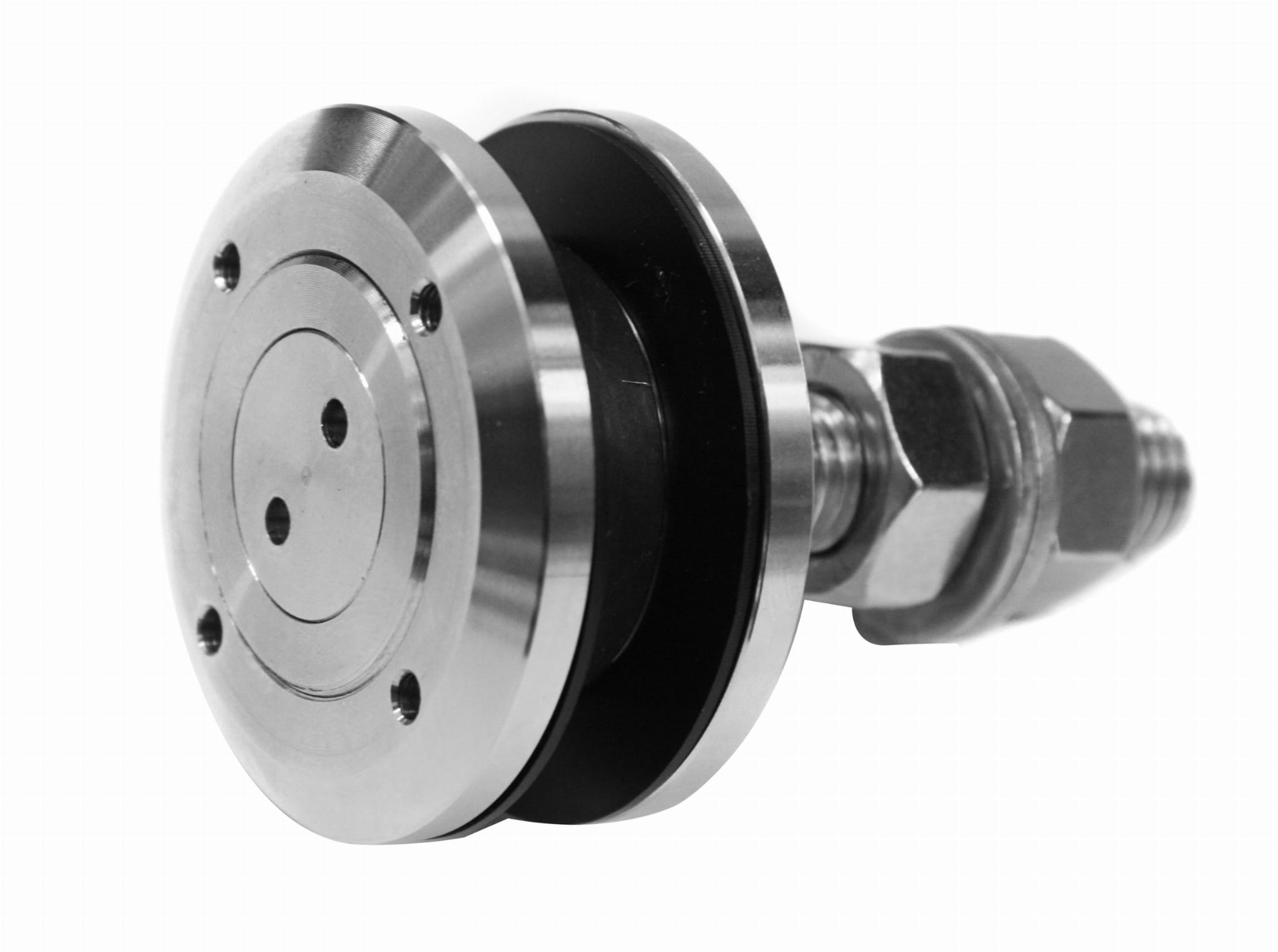

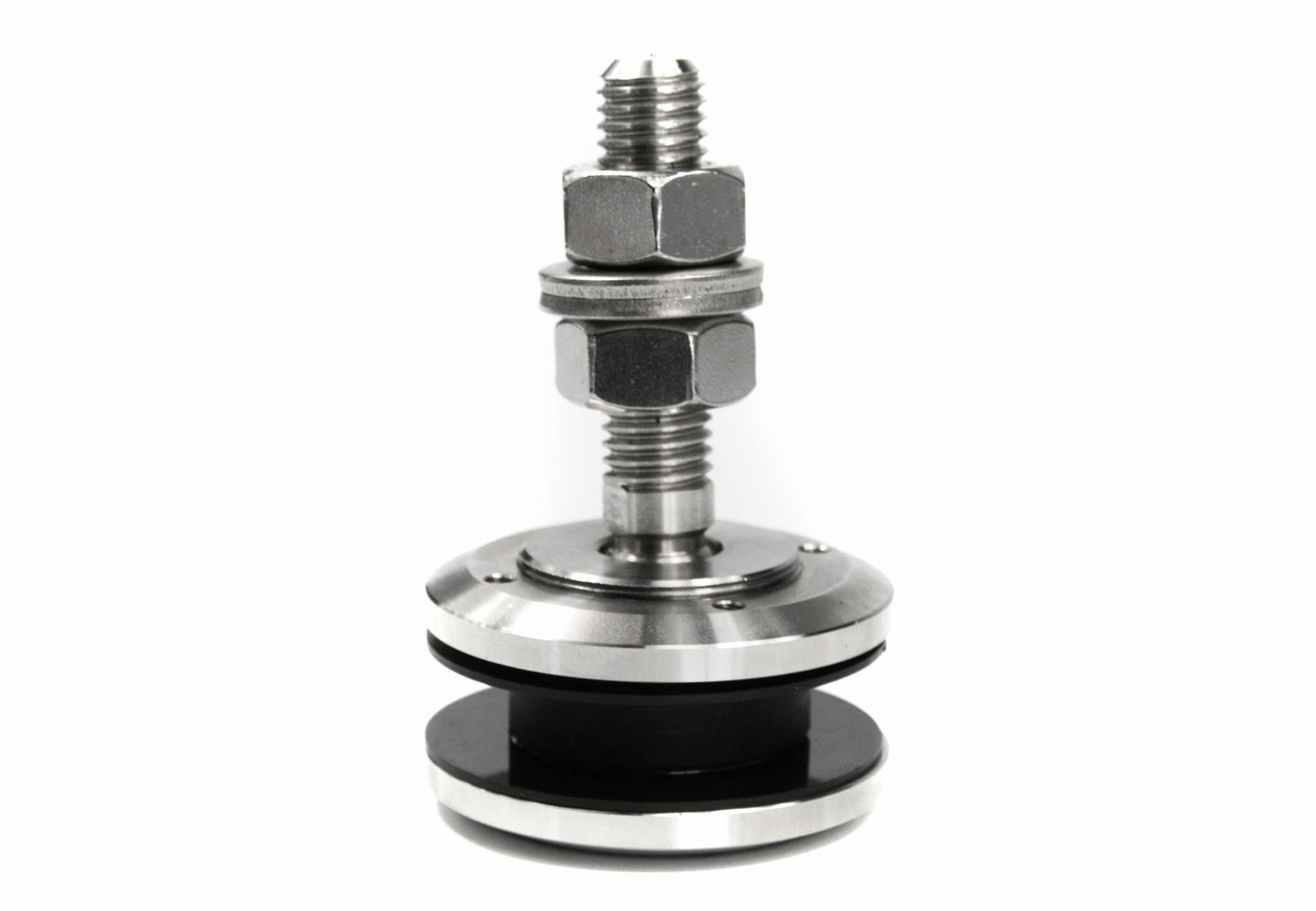

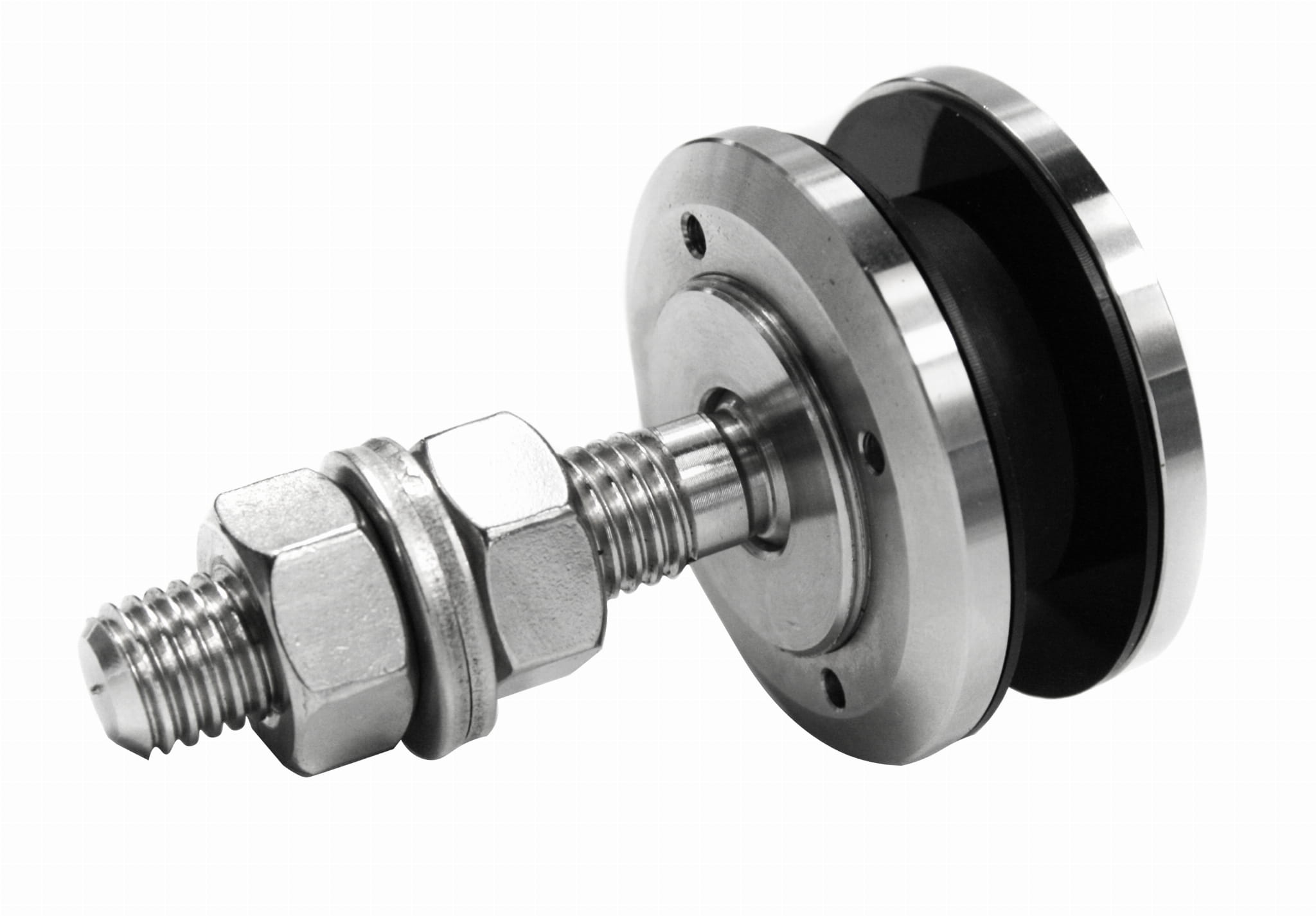

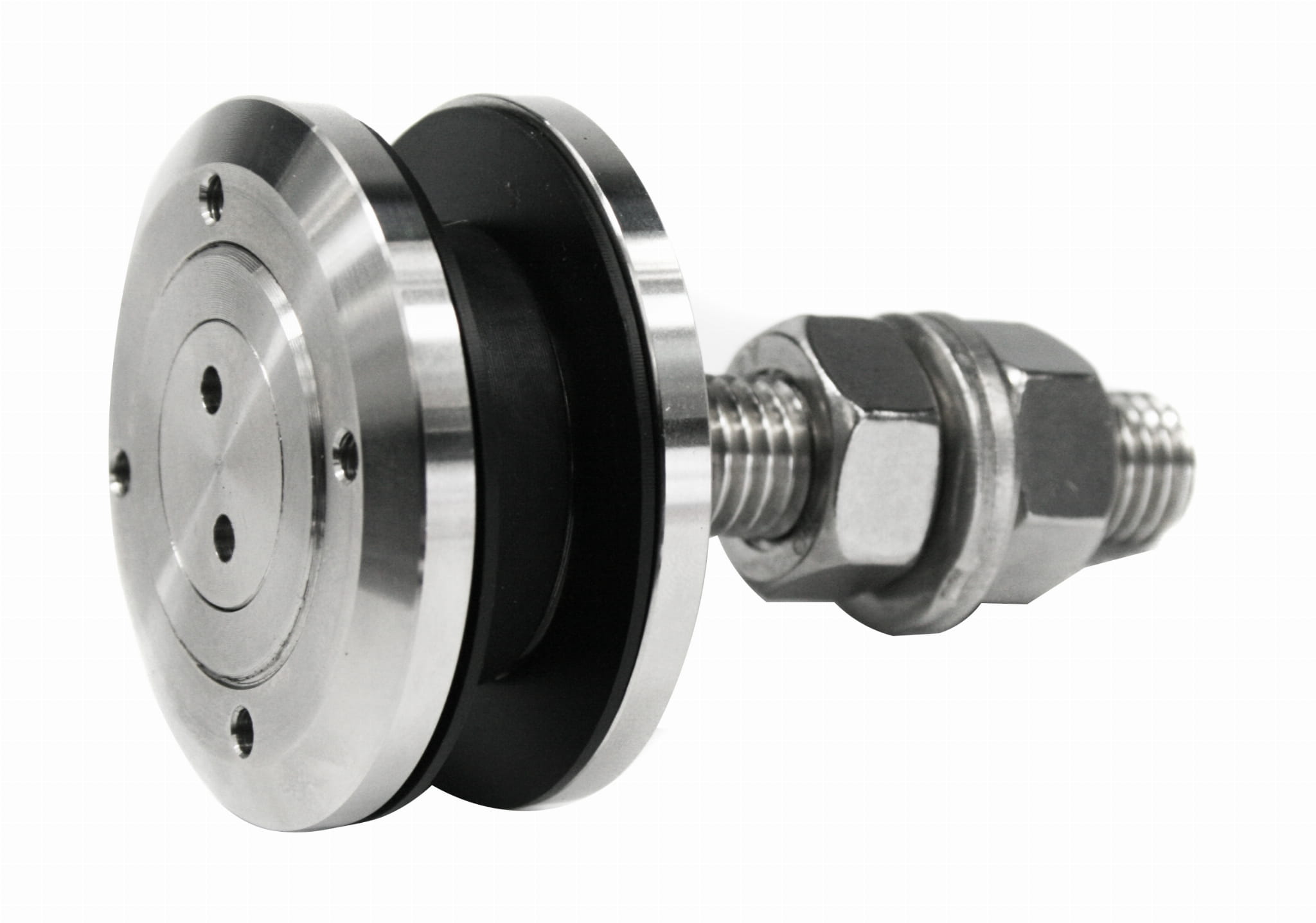

Glass holder SP 50mm, AISI 316, SATIN

Go to Product feedback
with VAT without VAT
Price €13.44
incl. 23% VAT

Shipping costs are not included in the price.

szt.
Availability:
product-availability-module running out
Shipping time: 24 h

Product features

  • Diameter Ø 50mm
  • Thickness of glass 10-13,52mm
  • Minimum glass opening Ø 32mm
  • Rod mounting M12
  • Seals Polypropylene
  • Steel Acid-resistant AISI 316
  • Surface Sanded
  • Mounting to surfaces Flat surface
  • Type of adjustment -
  • Additional information at an angle of +/- 10°
  • Adjustment Yes

Description

  • Diameter of the handle ø 50 mm
  • Mounting on the M12 rod
  • For 10-13,52 mm glass
  • The minimum mounting hole in the glass - ø 32 mm
  • Mounting to a flat surface
  • Plastic seals - thickness 1 mm - set included
  • Surface satin
  • Material: AISI 316 stainless steel
  • The holder is adapted to attach spiders/glass.
  • Designed specifically for stabilizing and fastening spider structures in construction

Application:

  • Facade systems: Enables the installation of glass facade panels, ensuring their stability and aesthetic appearance
  • Glass facades: Thanks to the articulated structure, it allows for precise positioning of glass panels at various angles and configurations
  • Architectural structures: Perfect for projects where high strength, flexibility and modern design are required
