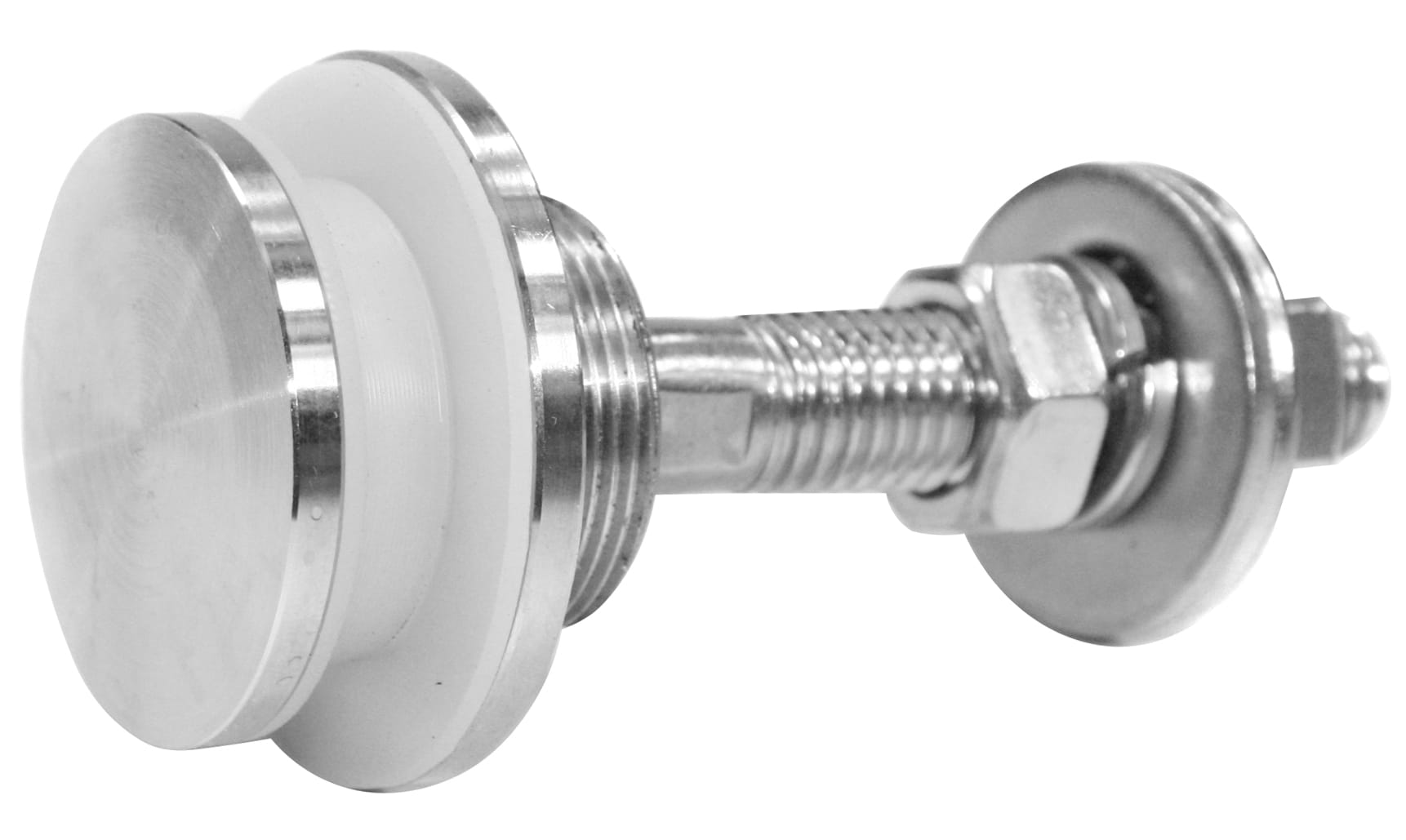

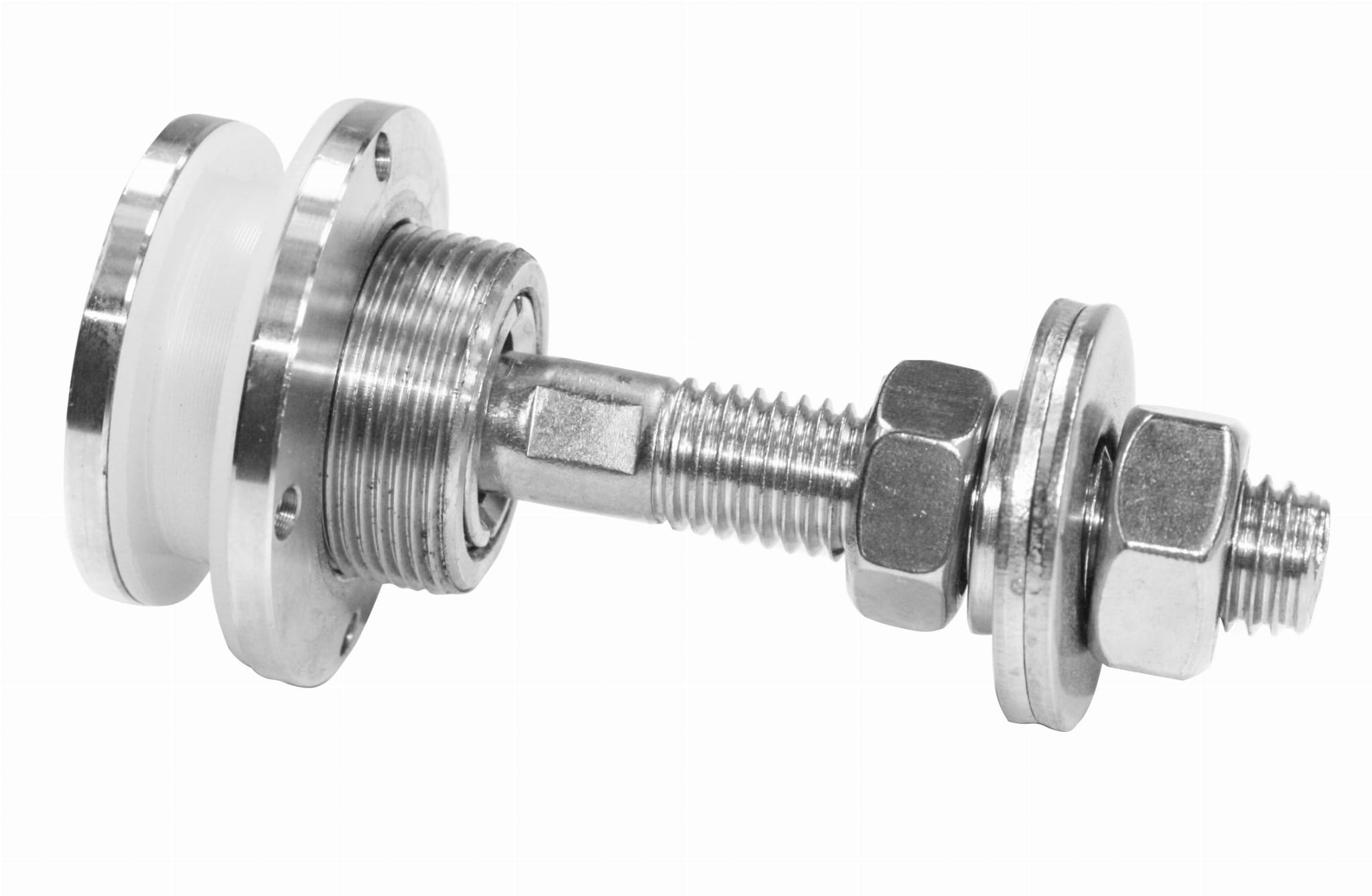

Glass holder SP 60mm, AISI 316, SATIN

Go to Product feedback
with VAT without VAT
Price €11.69
incl. 23% VAT

Shipping costs are not included in the price.

szt.
Availability:
product-availability-module running out
Shipping time: 24 h

Product features

  • Diameter Ø 60mm
  • Thickness of glass 10-17,52mm
  • Minimum glass opening Ø 35mm
  • Rod mounting M14
  • Seals PVC flexible (clear)
  • Steel Acid-resistant AISI 316
  • Surface Sanded
  • Mounting to surfaces Flat surface
  • Type of adjustment -
  • Additional information at an angle of +/- 13°
  • Adjustment Yes

Description

    • Diameter ø 60 mm
    • Mounting on an M14 rod
    • For glass 10-17.52 mm
    • Hole in the glass - min 35 mm
    • Installation on a flat surface
    • Gaskets - flexible PVC (white), 1 mm thick - included
    • Satin (matte) surface
    • Material: AISI 316 stainless steel
    • The holder is adapted to attach spiders/glass.
    • Designed specifically for stabilizing and fastening spider structures in construction

    Application:

    • Facade systems: Enables the installation of glass facade panels, ensuring their stability and aesthetic appearance
    • Glass facades: Thanks to the articulated structure, it allows for precise positioning of glass panels at various angles and configurations
    • Architectural structures: Perfect for projects where high strength, flexibility and modern design are required
