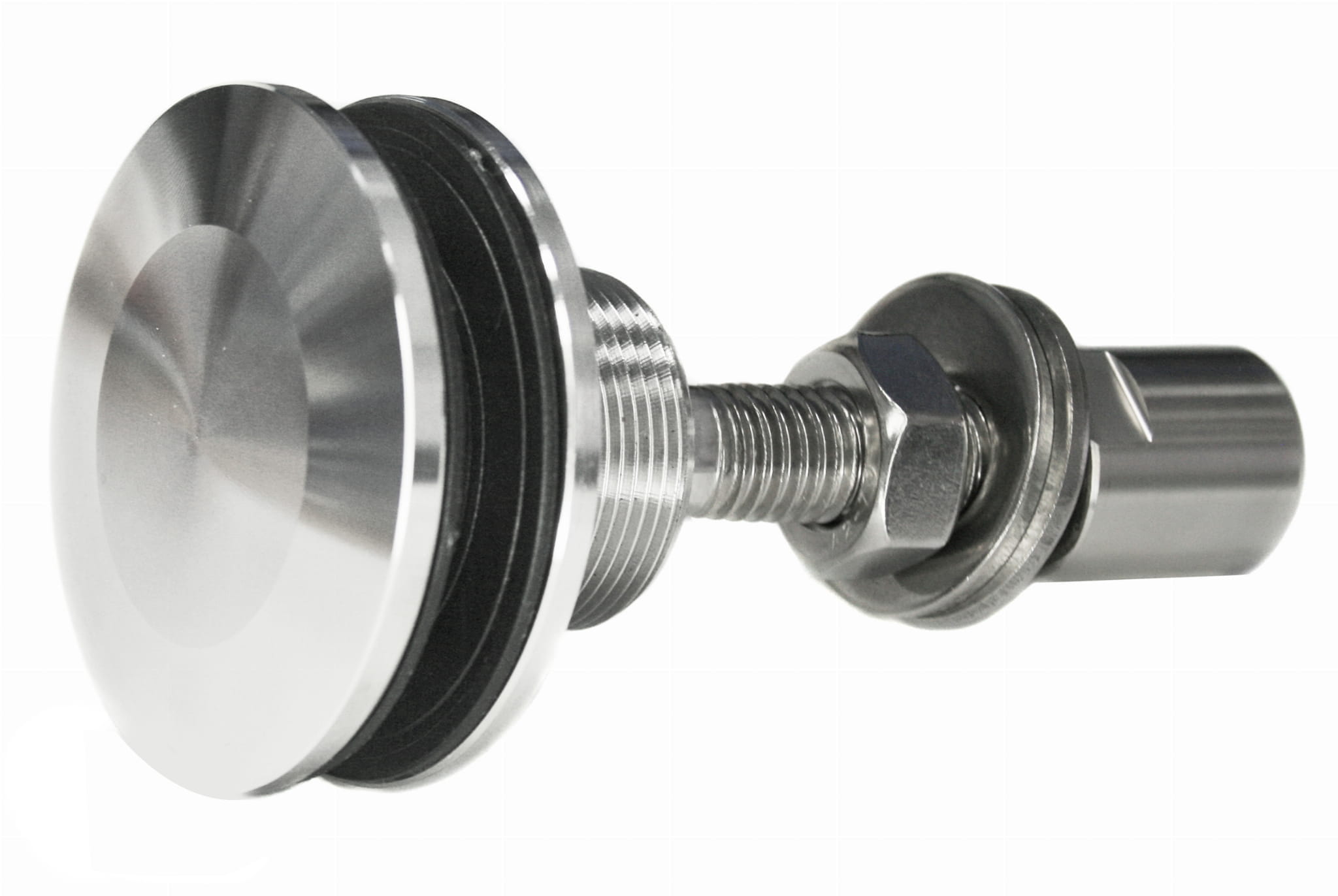

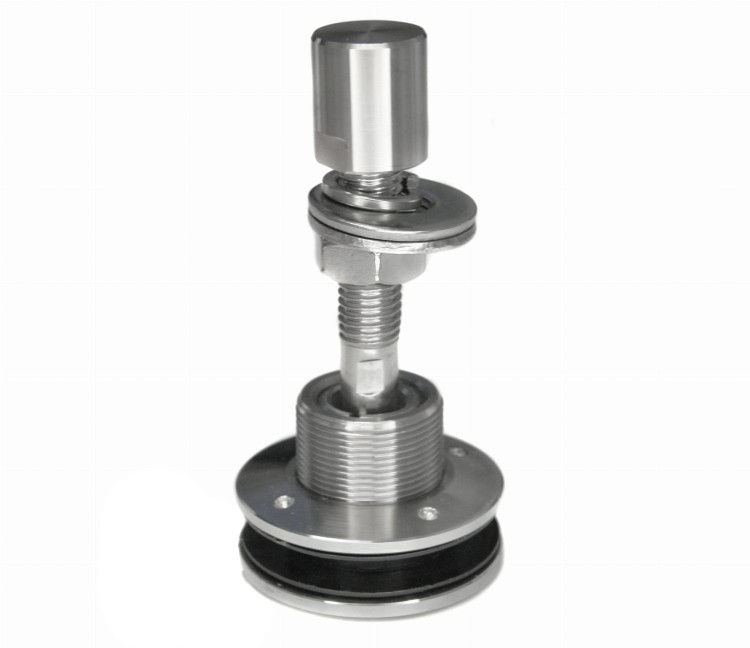

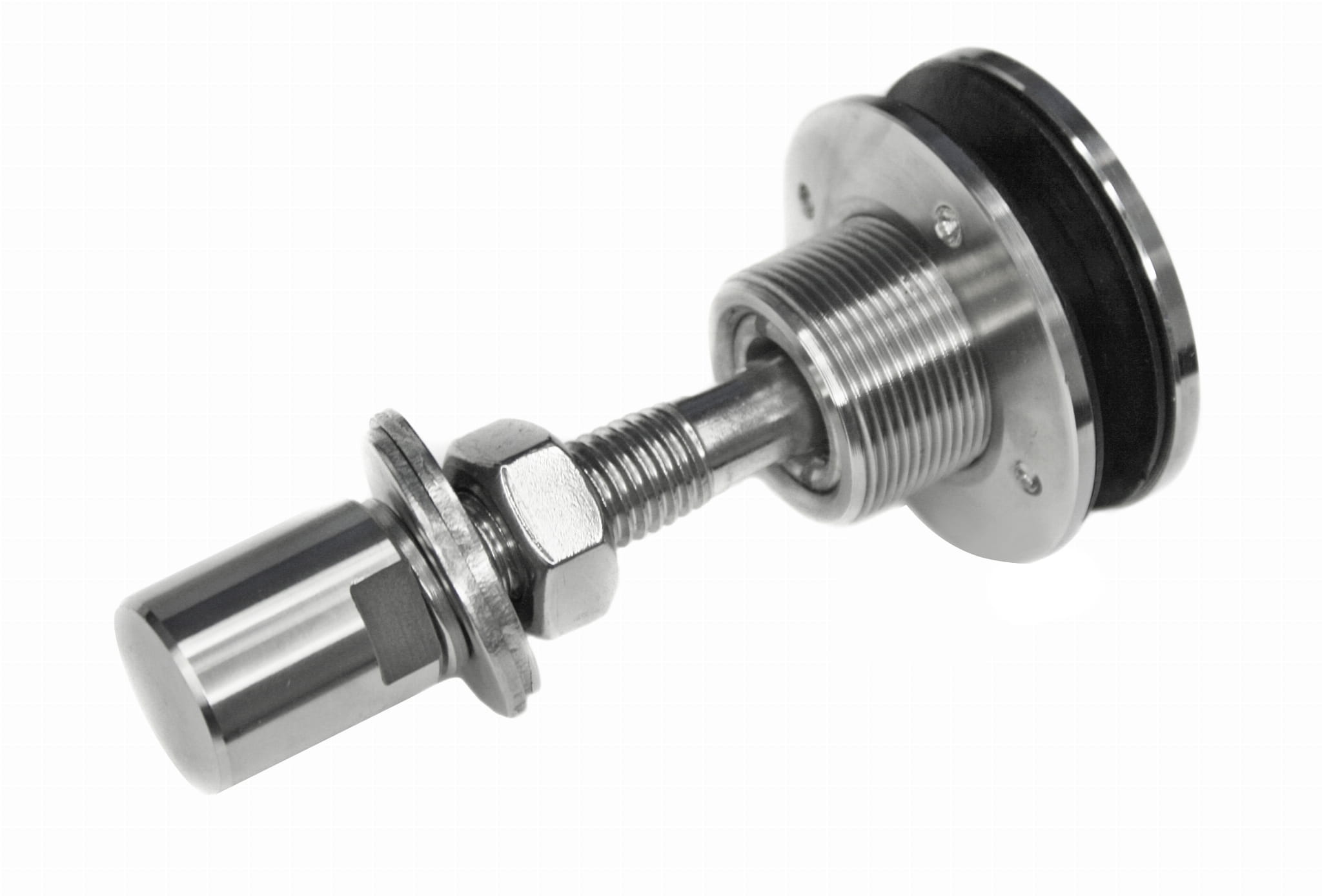

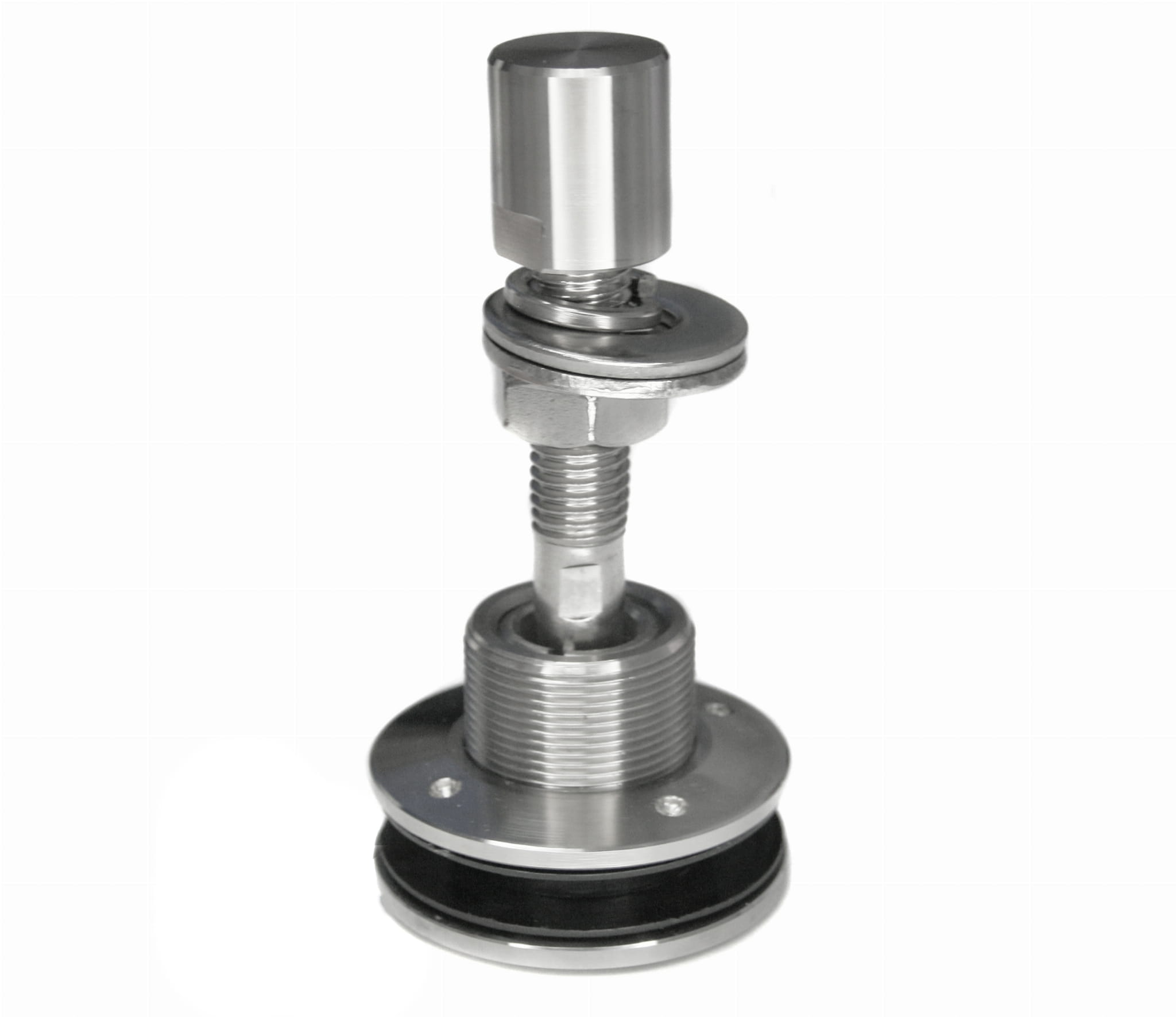

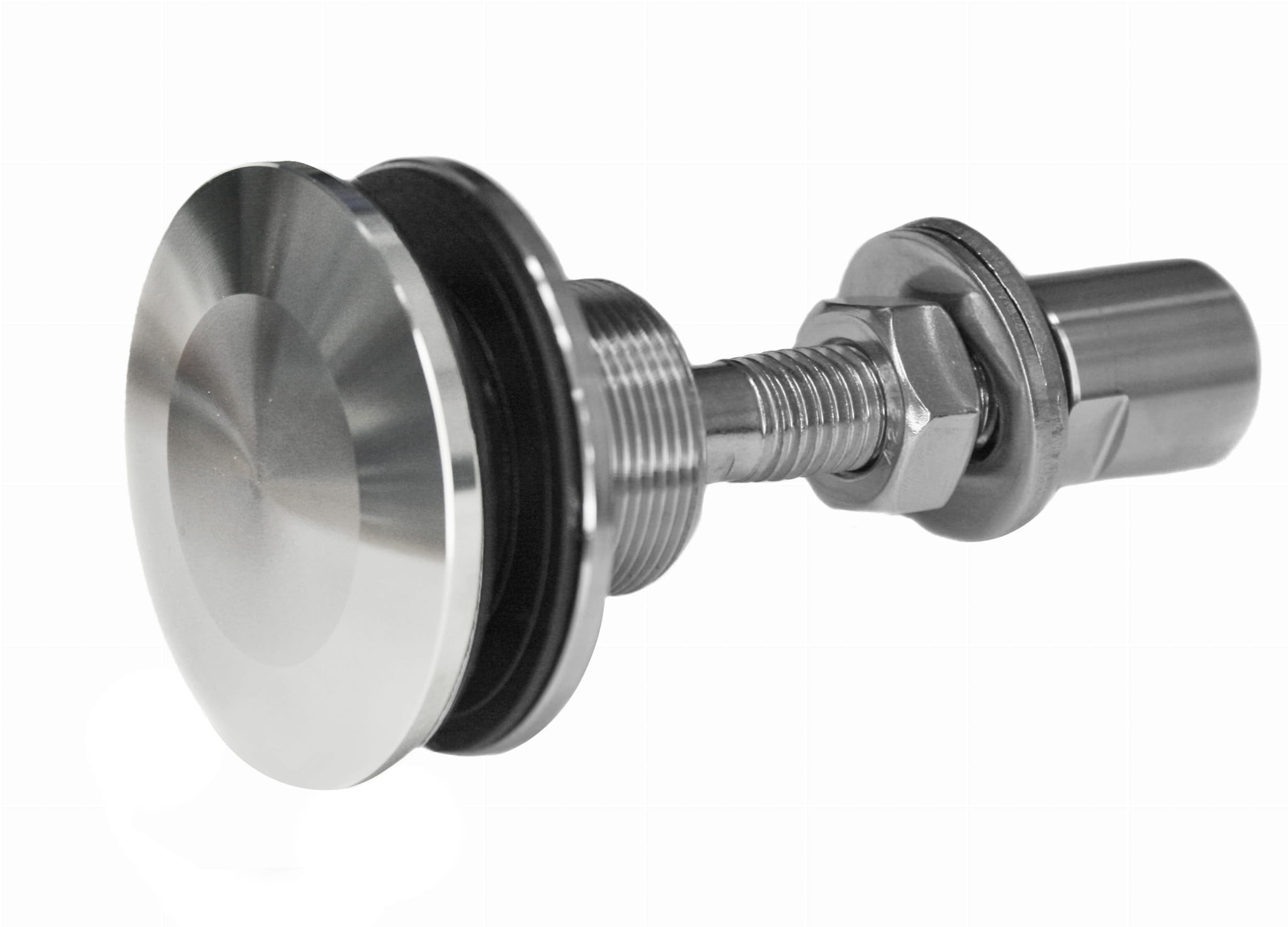

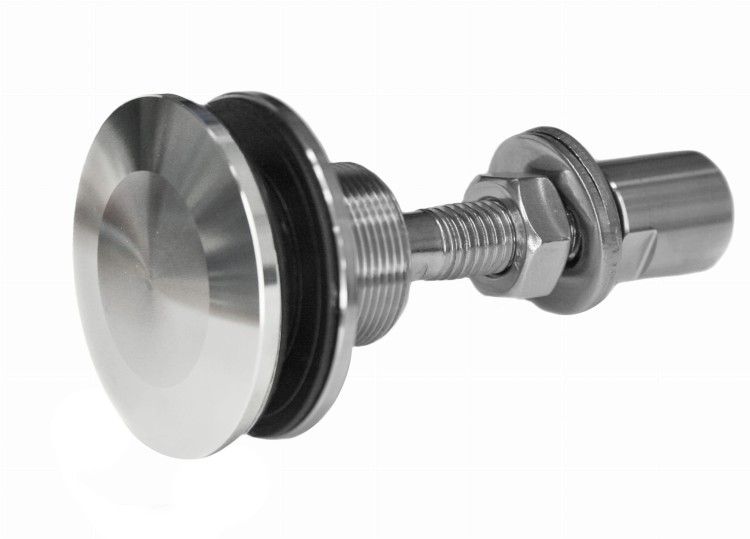

Glass holder SPU 58mm, AISI 304, SATIN

Go to Product feedback
with VAT without VAT
Price €13.44
incl. 23% VAT

Shipping costs are not included in the price.

szt.
Availability:
product-availability-module running out
Shipping time: 24 h

Product features

  • Diameter Ø 60mm
  • Thickness of glass 12-25,52mm
  • Minimum glass opening Ø 34mm
  • Rod mounting M14
  • Seals PVC flexible (clear)
  • Steel Stainless AISI 304
  • Surface Sanded
  • Mounting to surfaces Flat surface
  • Type of adjustment -
  • Additional information at an angle of +/- 13°
  • Adjustment Yes

Description

  • Diameter ø 58 mm
  • Mounted on the M14 rod with mounting adjustment at an angle of + / - 13°
  • For glass 12.00 - 25.52 mm
  • The minimum mounting hole in the glass - fi 34 mm
  • Mounting to a flat surface
  • Gaskets - flexible PVC (black), 1 mm thick - included
  • Satin surface (matte)
  • Material: AISI 304 stainless steel

Files to download

File icon GH_058SPU www.pdf 42.19 kB

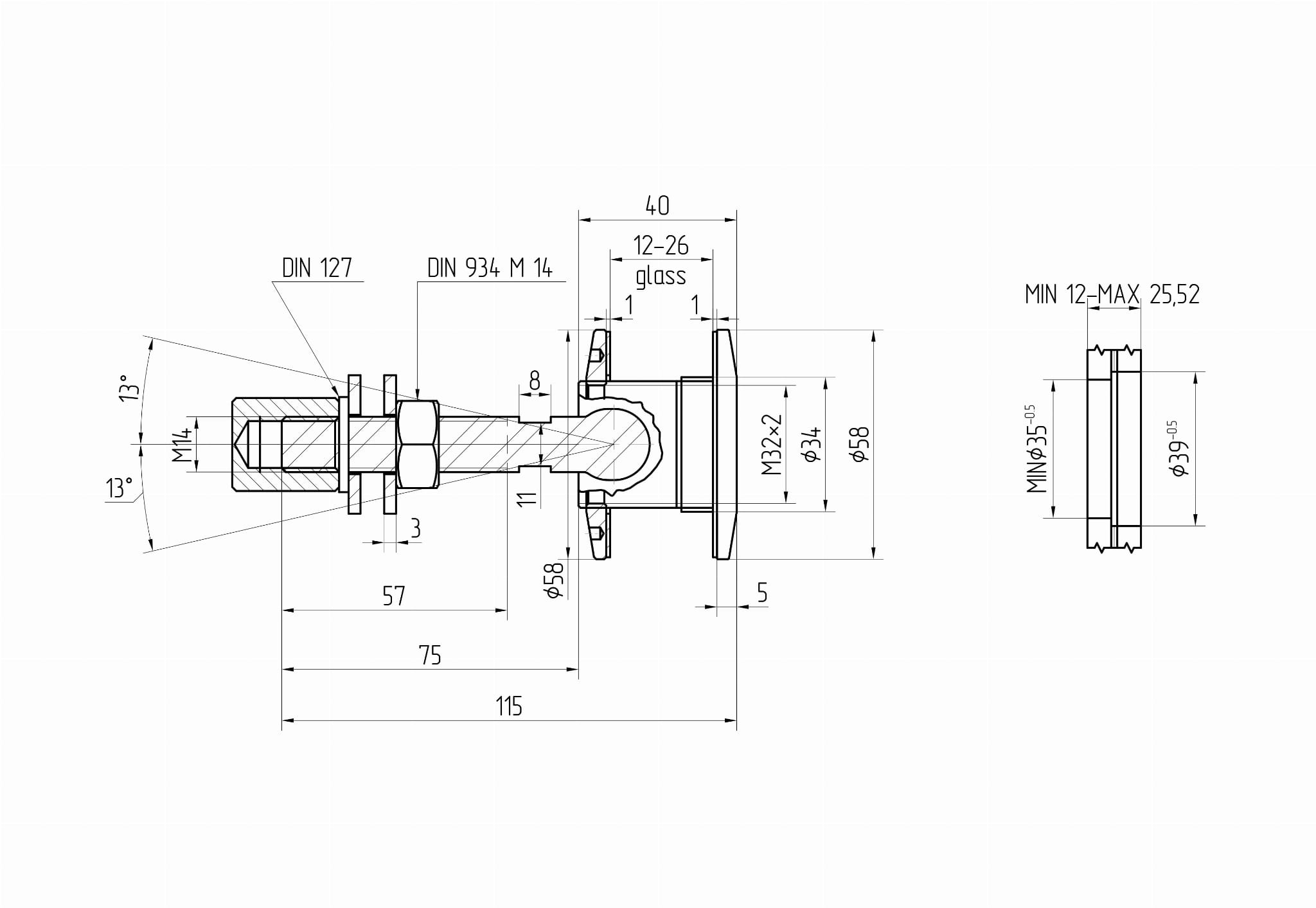

Technical drawing.PDF

File icon GH_058SPU www.dwg 212.92 kB

Technical drawing.DWG
