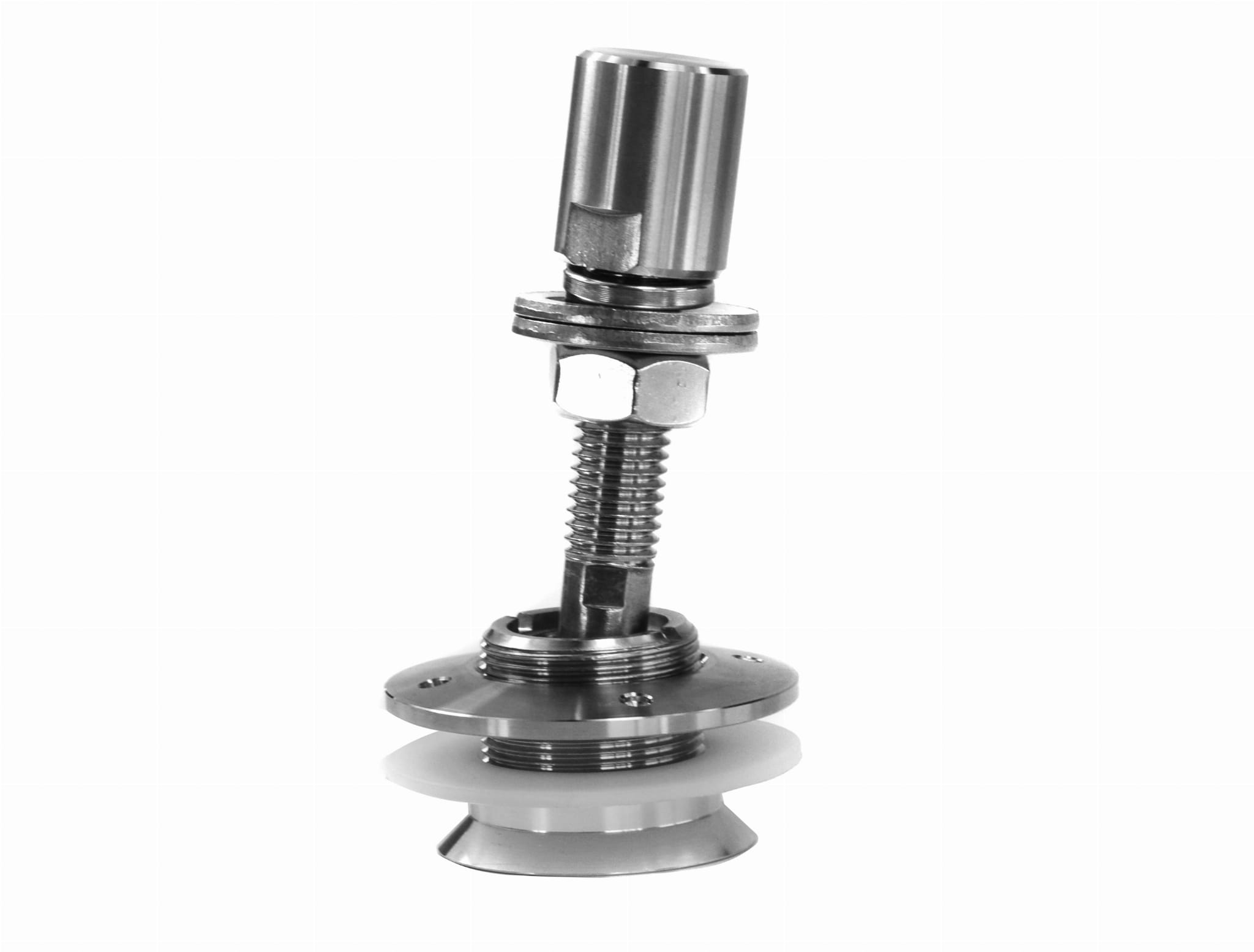

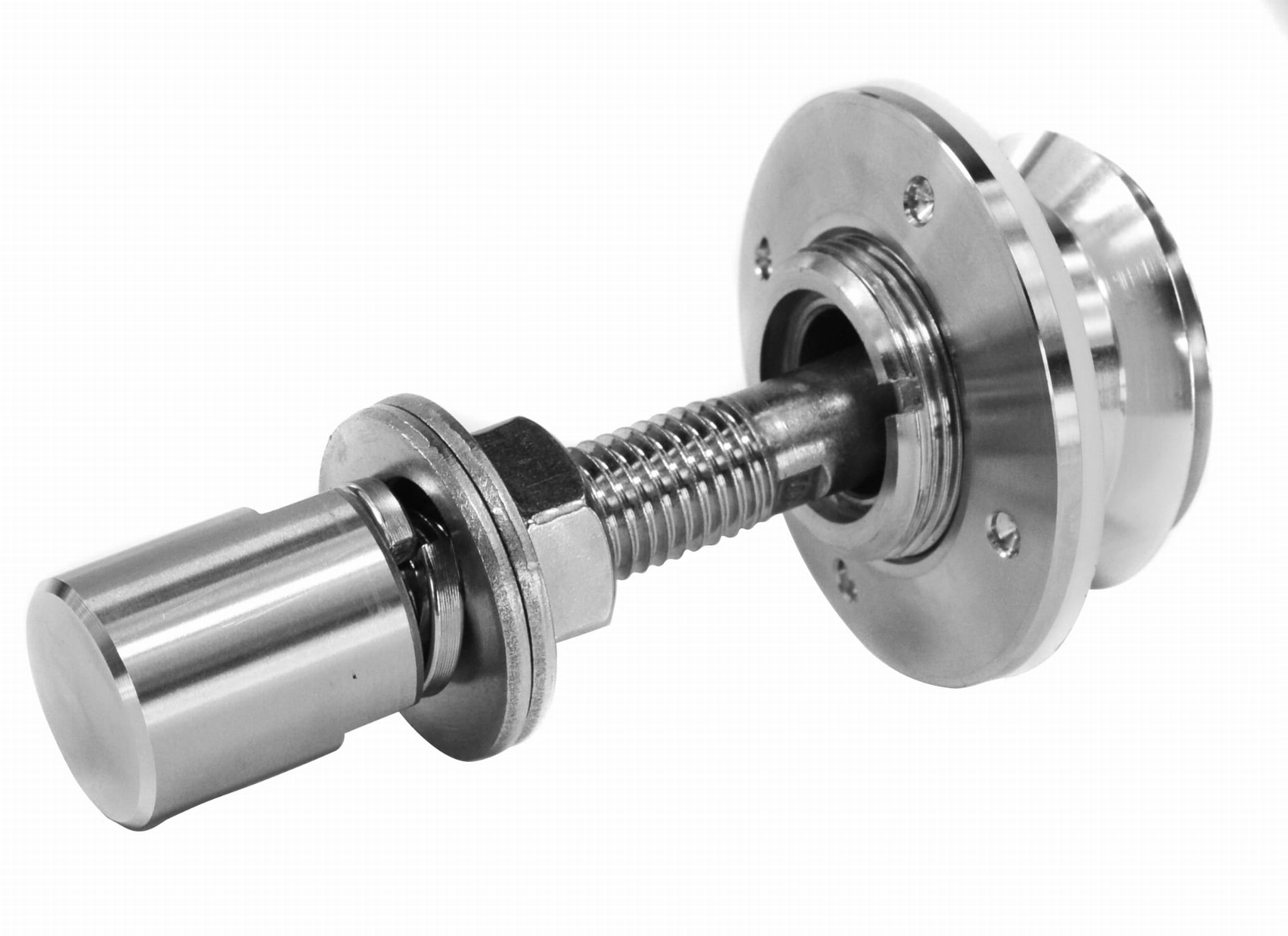

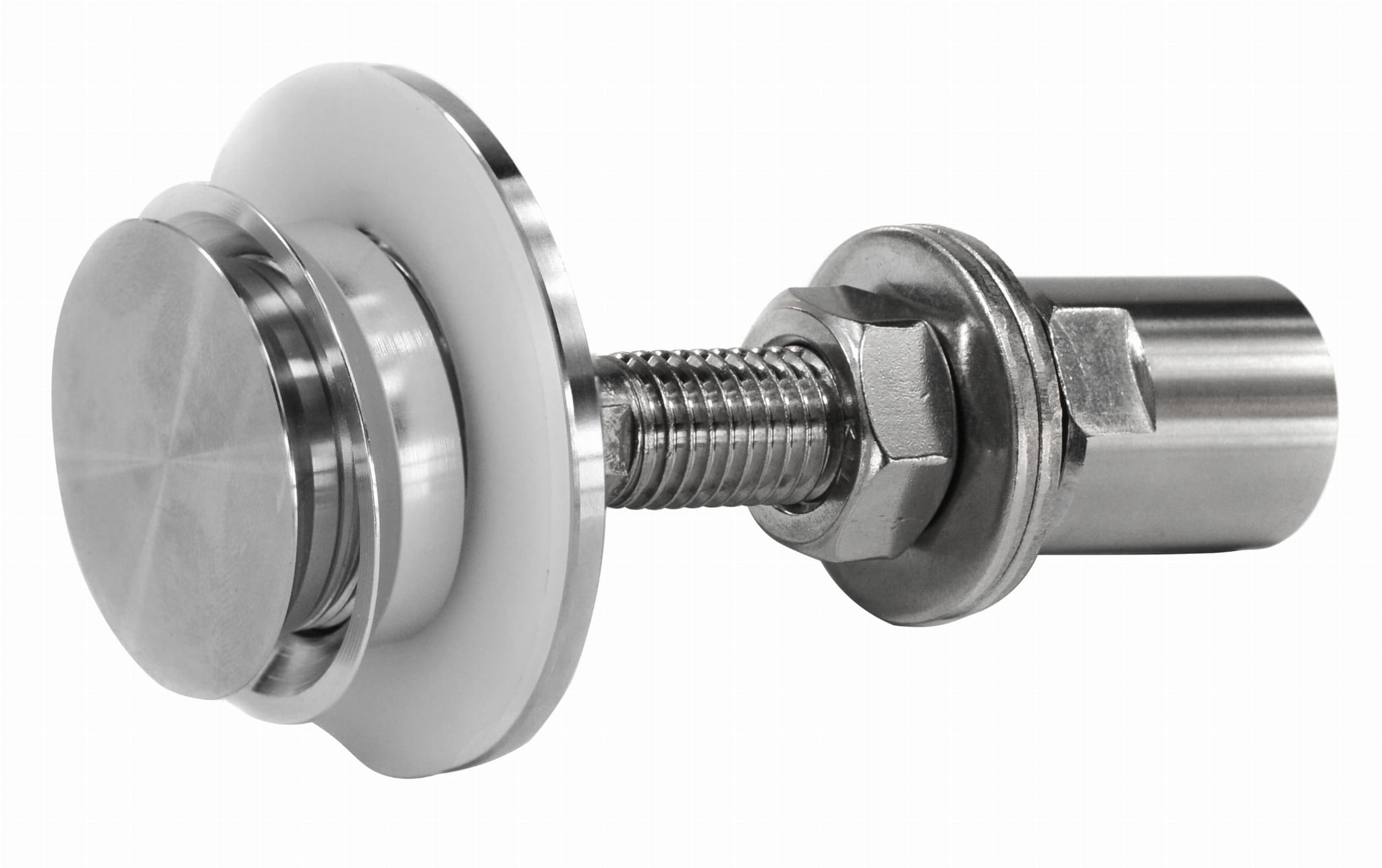

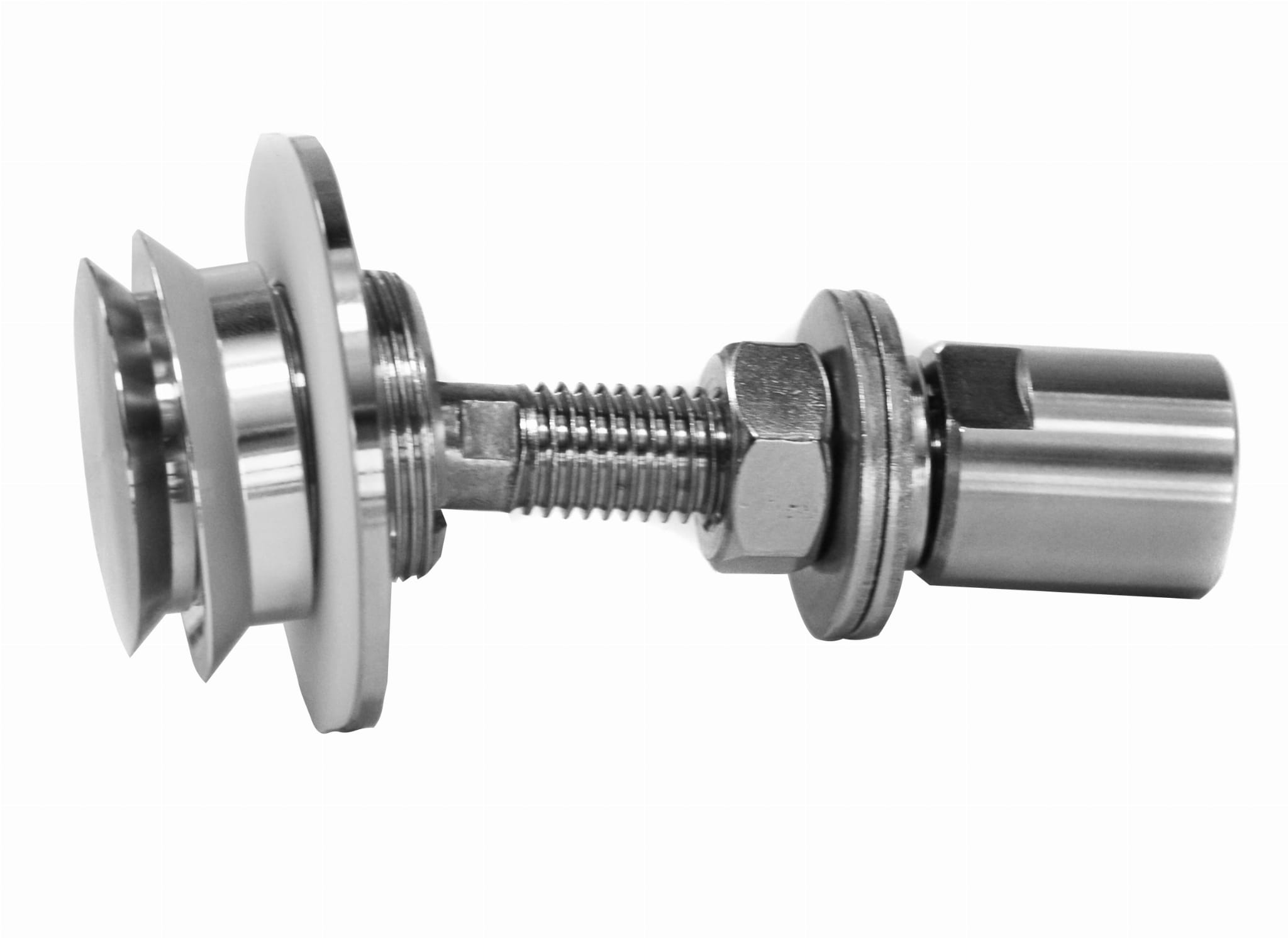

Glass holder TC 60mm, AISI 316, SATIN

Go to Product feedback
with VAT without VAT
Price €17.28
incl. 23% VAT

Shipping costs are not included in the price.

szt.
Availability:
product-availability-module running out
Shipping time: 24 h

Product features

  • Diameter Ø 60mm
  • Thickness of glass 12,76-21,52mm
  • Minimum glass opening Ø 37mm
  • Rod mounting M14
  • Seals Polypropylene
  • Steel Acid-resistant AISI 316
  • Surface Sanded
  • Mounting to surfaces Flat surface
  • Type of adjustment -
  • Additional information at an angle of +/- 10.5°
  • Adjustment Yes

Description

  • Diameter ø60 mm
  • Mounting on an M14 rod with mounting adjustment at an angle of + / - 10,5°
  • For glass 8-22 mm
  • The minimum mounting hole in glass - Ø 37 mm
  • Gaskets - Polypropylene (white), 1.5 mm thick - included
  • Satin surface (matt)
  • Material: AISI 316 stainless steel
  • The holder is adapted to attach spiders/glass.
  • Designed specifically for stabilizing and fastening spider structures in construction

Application:

  • Facade systems: Enables the installation of glass facade panels, ensuring their stability and aesthetic appearance
  • Glass facades: Thanks to the articulated structure, it allows for precise positioning of glass panels at various angles and configurations
  • Architectural structures: Perfect for projects where high strength, flexibility and modern design are required
